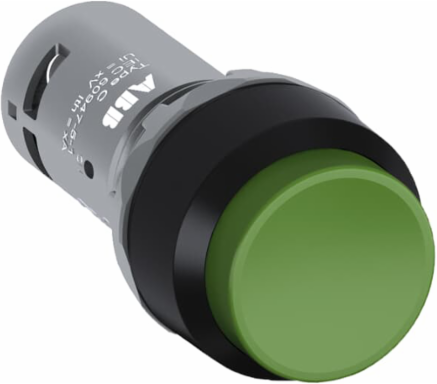

ABB CP3-10G-20 CP3-10G-20 Pushbutton
- MPN: CP3-10G-20
- UPC: 888614206670
- PPN: ABB-CP3-10G-20
- UNSPSC: 39122216
CAD
$45.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CP3-10G-20 Pushbutton is: Compact - Pushbutton - Momentary - Extended - Green - Non-illuminated - Black Plastic - 2NO - 2 NO - 0 NC - 300 V
Specifications
Dimensions
- Product Net Width
- 0.03 m
- Product Net Depth / Length
- 0.06 m
Product Net Height0.03 m
Product Net Weight0.022 kg
Technical
- Ambient Air Temperature
- Operation -25 ... +70 °CStorage -40 ... +85 °C
- Actuator Type
- Extended
- Illumination
- Non-illuminated
- Number of Auxiliary Contacts NC
- 0
- Degree of Protection
- Front IP66Front IP67Front IP69KTerminals IP20
- Pollution Degree
- 3
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Rated Operational Voltage
- Maximum 300 V
- Rated Operational Current AC-15 (Ie)
- (240 V) 1 A
- Mechanical Durability
- 0.5 million
- Connection Type
- Screw Clamp
- Tightening Torque
- 0.8 N·m
ColorGreen
Bezel MaterialBlack Plastic
FunctionMomentary
Number of Auxiliary Contacts NO2
Enclosure Type NEMAType1Type12Type13Type3RType4Type4X
Rated Insulation Voltage (Ui)300 V
Rated Frequency (f)50 / 60 Hz
Rated Operational Current DC-13 (Ie)(24 V) 0.3 A(125 V) 0.2 A
Power LossMaximum 5 W
Connecting CapacityFlexible with Ferrule 1 x 0.5...1.5 mm²Flexible with Ferrule 2 x 0.5...1.5 mm²Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²Flexible 1 x 0.5 ...1.5 mm²Flexible 2 x 0.5 ...1.5 mm²Solid 1 x 0.5...1.5 mm²Solid 2 x 0.5...1.5 mm²
Terminal TypeScrew Terminals
Wire Stripping Length6 mm
Classifications
- Object Classification Code
- S
- IDEA Granular Category Code (IGCC)
- 5212 >> Push button for distribution board
- E-Number (Norway)
- 4373451
eClassV11.0 : 27371228
E-Number (Finland)2312782
E-Number (Sweden)3705455
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information
- 2CMT2015-005451
- WEEE B2C / B2B
- Business To Business
RoHS Date0626 5
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Technical UL/CSA
- Connecting Capacity UL/CSA
- 1x 22...14 AWG2x 22...14 AWG
Ordering
- Minimum Order Quantity
- 10 piece
Customs Tariff Number8536501999
