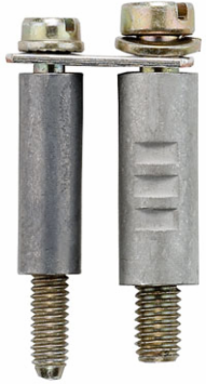

Weidmuller 1859600000 Q WDU6-2.5 SET
- MPN: 1859600000
- PPN: WDM-1859600000
CAD
$3.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, Cross-connector, For the terminals, Number of poles: 2
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 6 mm |
|---|---|
| Height | 11.5 mm |
| Depth | 22.5 mm |
| Net weight | 3.8 g |
| Width (inches) | 0.236 inch |
|---|---|
| Height (inches) | 0.453 inch |
| Depth (inches) | 0.886 inch |
Dimensions
| Pitch in mm (P) | 6 mm |
|---|
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of fixing | when screwed in |
| Installation advice | Feed-through (bushing), Direct mounting |
|---|
Material Data
| Material | tinned copper |
|---|
| Colour | Silver grey |
|---|
Classifications
| ETIM 6.0 | EC000489 |
|---|---|
| eClass 9.0 | 27-14-11-40 |
| eClass 10.0 | 27-14-11-40 |
| ETIM 7.0 | EC000489 |
|---|---|
| eClass 9.1 | 27-14-11-40 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Specifications
| Version | For the terminals |
|---|
Cross-Connector
| Number of cross-connected terminals | 2 |
|---|---|
| Type | Cross-connector |
| Rated current, multi-pole | 24 A |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Storage temperature, min. | 10 °C |
|---|
