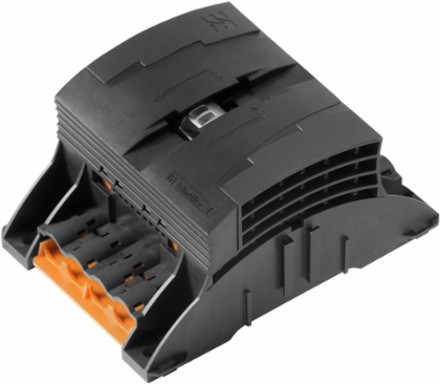

Weidmuller 2483990000 FP ESWB LANDING SET
- MPN: 2483990000
- PPN: WDM-2483990000
CAD
$33.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

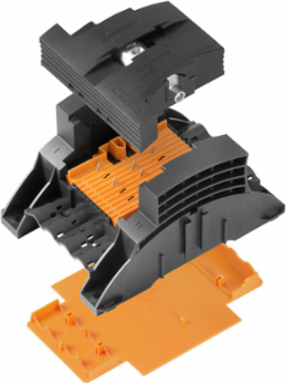

Wiring box for elevator shaft
Documentation & Downloads
Specifications
Further Technical Data
- Installation location
- Hoistway wall
- Type of fixing
- Screwed on wall
Snap-onNo
Approvals
- ROHS
- Conform

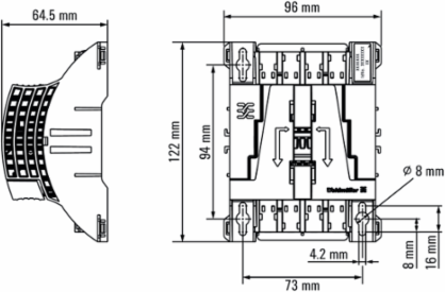

Dimensions And Weights
- Width
- 96 mm
- Height
- 122 mm
- Depth
- 64.5 mm
- Weight
- 262 g
Width (inches)3.78 inch
Height (inches)4.803 inch
Depth (inches)2.539 inch
Net weight261.28 g
Rated Data
- Rated current
- 6 A
- Rated voltage
- 230 V
Rated impulse withstand voltage4 kV
StandardsEN 81-20
Material Data
- Colour
- black, orange
- Housing main material
- Fiberglass-reinforced polyamide
- Protection degree
- IP20
- UL 94 flammability rating
- V-0
HalogenNo
Material of eccentric discZinc
SiliconeNo
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000214
- eClass 9.0
- 27-14-24-09
- eClass 10.0
- 27-14-24-09
ETIM 7.0EC000214
eClass 9.127-14-24-09
Product Information
- Product information

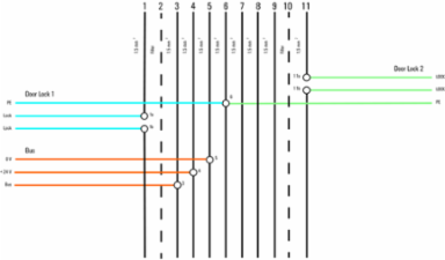

- The elevator shaft wiring box is currently only approved with the flat cable type 6G1.5+1x0.75mm²+4Filler (P/N 297 144) and 9G1.5+2xFiller (P/N 297 145) from manufacturer Dätwyler Cabling Solutions.Further versions on request.
Connectable Conductors (Push In)
- Clamping range, max.
- 1.5 mm²
- Flexible, max. H05(07) V-K
- 1.5 mm²
- Solid, max. H05(07) V-U
- 1.5 mm²
- Stripping length
- 12 mm
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.75 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.75 mm²
Clamping range, min.0.75 mm²
Flexible, min. H05(07) V-K0.75 mm²
Solid, min. H05(07) V-U0.75 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.1.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.1.5 mm²
Temperatures
- Operating temperature, max.
- 50 °C
- Storage temperature, max.
- 50 °C
- Operating temperature
- -5 °C...50 °C
- Temperature range, installation, min.
- 10 °C
Operating temperature, min.-5 °C
Storage temperature, min.-5 °C
Storage temperature-5 °C...50 °C
Temperature range, installation, max.50 °C
