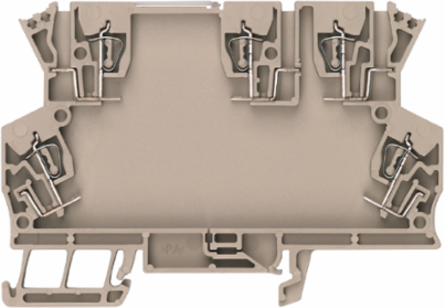

Weidmuller 8397760000 MCZ 5 SET
- MPN: 8397760000
- PPN: WDM-8397760000
CAD
$1122.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Small housing, OMNIMATE Housing - TERMINALBOX grey-beige, Terminal support, Width: 6 mm
Documentation & Downloads
Specifications
System Characteristics
- Version
- Terminal support
- Number of connections
- 5
- Number of PCBs per module
- 1
- Type of contact to PCB
- Solder connection, direct
- Cross-connection
- Yes
- Continuous current of cross-connection/PCB
- 32 A
- Protection degree
- IP20
- Power loss, max.
- 0.8 W
Type of connectionTension-clamp connection
Number of connection levels2
PCB thickness1 mm
Tolerance for the PCB shape±0.1 mm
Continuous current of cross-connection10 A
Contact to terminal railNo
Encapsulation optionYes
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Length
- 91 mm
- Width
- 6 mm
- Height
- 63 mm
- Net weight
- 1,662 g
Length (inches)3.583 inch
Width (inches)0.236 inch
Height (inches)2.48 inch
Rated Data Acc. To Iec
- Rated current, max. number of poles (Tu=20°C)
- 10 A
- Rated voltage for surge voltage class / pollution degree II/2
- 400 V
- Rated voltage for surge voltage class / pollution degree III/3
- 250 V
- Rated impulse voltage for surge voltage class/ pollution degree III/2
- 4 kV
Rated current, max. number of poles (Tu=40°C)10 A
Rated voltage for surge voltage class / pollution degree III/2320 V
Rated impulse voltage for surge voltage class/ pollution degree II/24 kV
Rated impulse voltage for surge voltage class/ contamination degree III/34 kV
Material Data
- Colour
- grey-beige
- Comparative Tracking Index (CTI)
- ≥ 600
- Contact base material
- CuZn
- Contact surface
- tinned
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Insulating material groupIIIa
UL 94 flammability ratingV-0
Contact materialCuZn
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.120 °C
Temperature range, installation, max.120 °C
Classifications
- ETIM 6.0
- EC001031
- eClass 9.0
- 27-18-27-02
- eClass 10.0
- 27-18-27-02
ETIM 7.0EC001031
eClass 9.127-18-27-92
UNSPSC30-21-18-01
