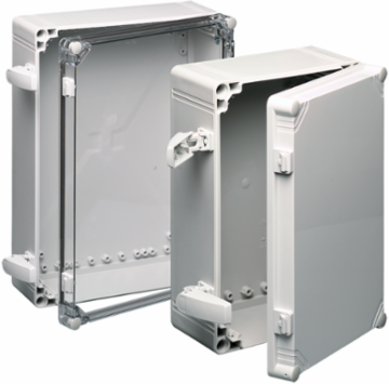

nVent Hoffman Q202018PCI QLine I Enclosure Type 4X, 200x200x180mm, Polycarbonate
- MPN: Q202018PCI
- UPC: 783510144791
- PPN: HOF-Q202018PCI
- UNSPSC: 39121309
CAD
$191.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QLine I polycarbonate/ABS larger sized enclosures ideal in corrosive environments protecting controls. This QLine I Enclosure Type 4X, Q202018PCI item measures 200x200x180mm with a material of Polycarbonate.
Features
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable-depth panel kit
- Screws provided for mounting optional panel
- Optional extension rings are molded polycarbonate
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Protection Rating
- NEMA Type 12
- Height
- 200 mm
- Thickness
- 4 mm
- Material
- Polycarbonate, impact-resistant, halogen-free
- Finish
- Smooth Gloss
- Cover Style
- Opaque
- Seal
- Seamless foam-in-place gasket, water-tight and dust-tight
- Latch
- Quick-release latches with polycarbonate hinges and polyester latches with padlock provision
- Mounting Holes
- Molded directly under cover screws
- Product Family
- QLine
- Type
- 4X
IP RatingIP66
Width200 mm
Depth180 mm
Weight1.35
ColorLight Gray (RAL 7035)
Latch TypeScrew Cover
Mounting (G x H)180 x 180
Cover AttachmentEasy-to-remove covers with polyamide cross-point screws
Internal MountingMolded internal pads and rails for mounting optional panels, rails, and adjustable-depth panel kit
Extension Rings MaterialMolded polycarbonate
Sub BrandQLine
