Nvent Hoffman Q603018PCIQRR QLine I Enclosure QR Cover Type 4X, 600x300x180mm, Polycarbonate
Nvent Hoffman Q603018PCIQRR QLine I Enclosure QR Cover Type 4X, 600x300x180mm, Polycarbonate
- MPN: Q603018PCIQRR
- UPC: 783510159764
- PPN: HOF-Q603018PCIQRR
- UNSPSC: 39121309
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$451.23/ EA
Description

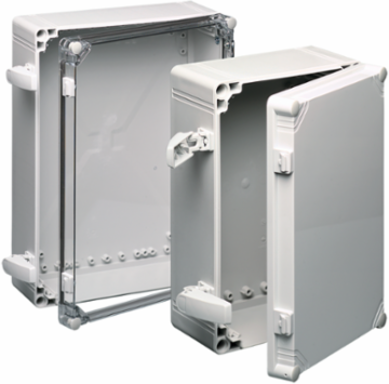

QLine I polycarbonate/ABS larger sized enclosures ideal in corrosive environments protecting controls. This QLine I Enclosure QR Cover Type 4X, Q603018PCIQRR item measures 600x300x180mm with a material of Polycarbonate.
Features
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable-depth panel kit
- Screws provided for mounting optional panel
- Optional extension rings are molded polycarbonate
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 300
- Protection Rating
- NEMA Type 12
- Finish
- Smooth Gloss
- Color Code
- RAL 7035
- Mounting (G x H)
- 580 x 280
- Latch Type
- Quick Release
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Sub Brand
- QLine
- Size
- 600x300x173mm
Height (H)600
Depth (D)180
Product FamilyQLine
ColorLight Gray
Thickness (T)4
Cover StyleOpaque
IP RatingIP66
Weight10
MaterialPolycarbonate
