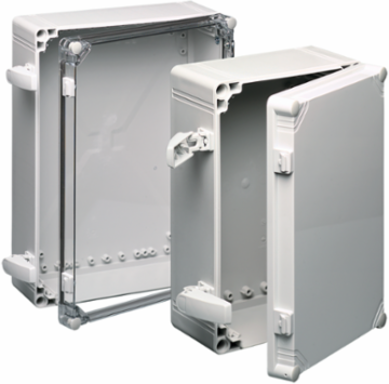

nVent Hoffman Q202018PCIQRR QLine I Enclosure QR Cover Type 4X, 200x200x180mm, Polycarbonate
- MPN: Q202018PCIQRR
- UPC: 783510159641
- PPN: HOF-Q202018PCIQRR
- UNSPSC: 39121309
CAD
$228.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QLine I polycarbonate/ABS larger sized enclosures ideal in corrosive environments protecting controls. This QLine I Enclosure QR Cover Type 4X, Q202018PCIQRR item measures 200x200x180mm with a material of Polycarbonate.
Features
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable-depth panel kit
- Screws provided for mounting optional panel
- Optional extension rings are molded polycarbonate
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Protection Rating
- NEMA Type 12
- Size
- 200 x 200 x 173 mm
- Width (W)
- 200 mm
- Thickness (T)
- 4 mm
- Material
- Polycarbonate, impact-resistant
- Latch Type
- Quick Release
- Color
- RAL 7035 light gray inside and out
- Padlock Provision
- Yes
- Mounting (G x H)
- 180 x 180 mm
- Cover Screw Material
- Polyamide cross-point
- Body Workability
- Easily punched, drilled, filed or sawed
- Product Family
- QLine
IP RatingIP66
Type RatingType 4X
Height (H)200 mm
Depth (D)180 mm
Weight3.7 lb
Cover StyleOpaque
Cover TypeQuick-Release Latch
FinishSmooth Gloss
SealingSeamless foam-in-place gasket, water-tight and dust-tight
Mounting HolesMolded directly under cover screws
Internal Mounting FeaturesMolded internal pads, rails for adjustable-depth panel kit
Halogen ContentHalogen-free
Sub BrandQLine
