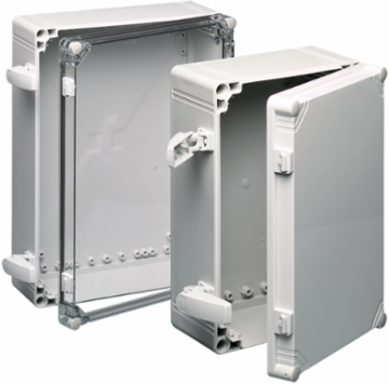

nVent Hoffman Q402018PCIQRR QLine I Enclosure QR Cover Type 4X, 400x200x180mm, Polycarbonate
- MPN: Q402018PCIQRR
- UPC: 783510159689
- PPN: HOF-Q402018PCIQRR
- UNSPSC: 39121309
CAD
$330.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QLine I polycarbonate/ABS larger sized enclosures ideal in corrosive environments protecting controls. This QLine I Enclosure QR Cover Type 4X, Q402018PCIQRR item measures 400x200x180mm with a material of Polycarbonate.
Features
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable-depth panel kit
- Screws provided for mounting optional panel
- Optional extension rings are molded polycarbonate
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision
Documentation & Downloads
Specifications
Additional
| Protection Rating | NEMA Type 12, 4X Watertight corrosion-resistant |
|---|---|
| IP Rating | IP66 |
| Height (H) | 400 mm |
| Depth (D) | 180 mm |
| Material | Polycarbonate, halogen free |
| Color | Light Gray (RAL 7035) |
| Latch Type | Quick Release with padlock provision |
| Mounting (G x H) | 380 x 180 mm, screws provided, molded internal pads and rails for adjustable-depth panel |
| Hinges | Polycarbonate |
| Body Features | Impact-resistant, easily punched, drilled, filed or sawed |
| Product Family | QLine |
| NEMA Rating | 4X Watertight, corrosion-resistant |
|---|---|
| Size | 400 x 200 x 180 mm |
| Width (W) | 200 mm |
| Thickness (T) | 4 mm |
| Finish | Smooth gloss, RAL 7035 light gray inside and out |
| Cover Style | Opaque |
| Cover Features | Molded-in hole for wire lead |
| Mounting Holes | Molded directly under cover screws |
| Seal Type | Seamless foam-in-place gasket |
| Sub Brand | QLine |
| BABA | Contact Manufacturer |
