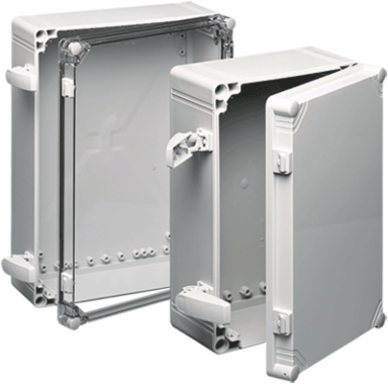

nVent Hoffman Q302013PCICC Qline I, Type 4X - Q302013PCICC
- MPN: Q302013PCICC
- UPC: 783510144999
- PPN: HOF-Q302013PCICC
CAD
$207.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Features
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Opaque and clear covers are impact-resistant polycarbonate for PCI; opaque covers are ABS for ABI series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable-depth panel kit
- Screws provided for mounting optional panel
- Optional extension rings are molded polycarbonate
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws.
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision.
Documentation & Downloads
Specifications
Key Specifications
- Bulletin Number
- Q41
- Model Code
- 3.0
- Catalog Number
- Q302013PCICC
- B in.
- 7.4
- F in.
- 4.53
- R in.
- 5.51
- T in.
- 4.72
- P in.
- 5.91
- Y in.
- 3.94
- Panel
- Q3020PI
- Z in.
- 7.87
- External Dim's L x W in.
- 11.81 x 7.87
- Standards
- UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || NEMA/EEMAC Type 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12, 13 || IEC 60529, IP66 || NEMA/EEMAC Type 4, 4X, 12, 13 || IEC 60529, IP66
Material14499
Ship Wt. Std. Pkg. (lbs)False
A in.11.34
C in.4.84
Panel Size D x E in.10.24 x 6.30
S in.9.45
Q in.9.84
Mounting G x H in.11.02 x 7.09
U in.8.27
Cover TypeScrew Cover
Cover StyleClear
Extension RingQ3020EXTI
