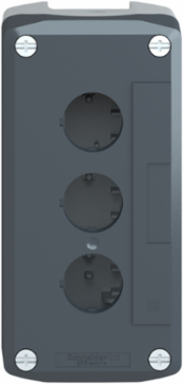

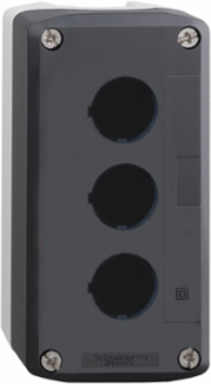

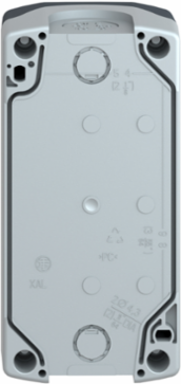

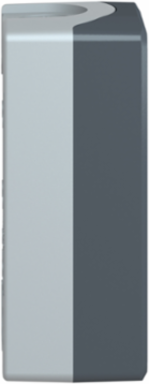

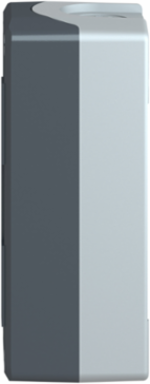

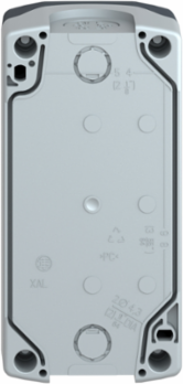

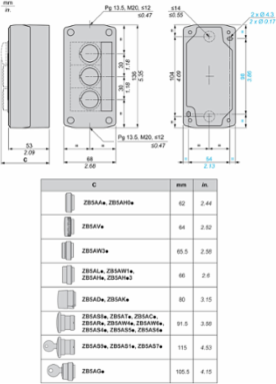

Schneider Electric XALD03H7 Harmony XALD Empty Control Station, 3 Cut-Outs, IP66/IP67/IP69K, Polycarbonate
- MPN: XALD03H7
- PPN: SCH-XALD03H7
CAD
$49.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XALD empty control station has 3 cut-out for 3 push buttons / 3 functions for controlling of operation in machines. This 3 cut-out dark grey empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- esigned with three 22mm cutouts, this Harmony XALD dark grey base and light grey lid allow for total flexibility in mounting pushbuttons, pilot lights, or selector switches. This modularity enables industrial engineers to build a tailored control station whether it's a Start/Stop/Emergency-Stop combo or a custom signaling unit perfectly suited for your machine s unique operational requirements.
- Built with high-strength polycarbonate and featuring a secure silicone seal, this enclosure provides superior resistance to dust, corrosion, and powerful water jets. It is the ideal solution for food and beverage processing plants or outdoor industrial sites where your control components must remain bone-dry and functional despite chemical exposure and extreme weather conditions.
- This specific "H7" variant comes pre-configured with a 1/2" NPT threaded entry, the standard for North American electrical installations. This eliminates the need for manual drilling or messy adaptors, allowing you to quickly and securely thread in liquid-tight conduit connectors for a professional, code-compliant seal that speeds up on-site commissioning.
- Engineered to meet IK03 impact ratings and high vibration standards, the XALD series is designed to survive the rigors of heavy machinery operation without cracking or losing seal integrity. Choosing a Schneider Electric Harmony enclosure ensures your control station remains structurally sound in high-traffic industrial zones, preventing expensive downtime caused by mechanical failure or physical damage.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, Mexico, United States
Physical Attributes
- Color Of Base Of Enclosure
- light grey RAL 7035)
Color Of Coverdark grey RAL 7016)
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Mounting Of Block
- rear mounting, front mounting
- Carbon Footprint Of The Distribution Phase [A4]
- 0.16525580599146994, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0009740331773423409, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cable Entry

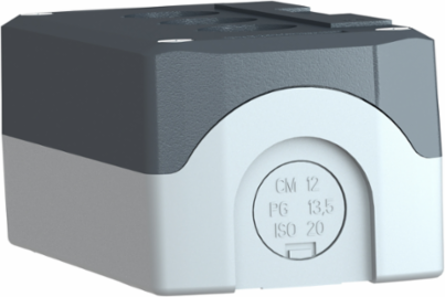

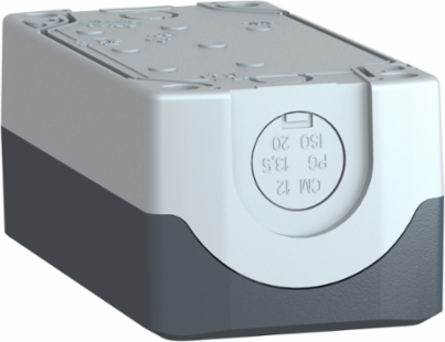

- 2 knock-outs for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
- Device Short Name
- XALD
- Group Of Product
- UL-CSA grey
- Material
- polycarbonate
- Number Of Vertical Rows
- 3
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- empty control station
- Range Of Product
- Harmony XALD
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Color Of Base Of Enclosure
- light grey RAL 7035)
- Pep Code
- ENVPEP2506022EN
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Number Of Cut-out
- 3 cut-outs
- Package Weight(Lbs)
- 225.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodePF2, MR1, SF1, MF2, SF2, SR2, SR1, PR1, PF1, MF1
Certificate AgencyUL, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.4840669365321025
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.2307855224191027
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2506022EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Assembly Stylefor customer assembly
Compatibility CodeXALD
Gcr BridgeXALD03CUST01
Main Group3 cut-outs
Number Of Horizontal Rows1
Overvoltage Categoryclass II conforming to IEC 60536
Product Destinationfor XB5 Ø 22 mm control and signalling units
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Software Versionv6.3.0.1-4
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Color Of Coverdark grey RAL 7016)
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %18
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code3926909989
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1.8810822981200173
- Environmental Disclosure
- ENVPEP2506022EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506022EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2506022EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- empty control station
Range Of ProductHarmony XALD
ETIM
- ETIM 8
- EC000200
ETIM 9EC000200
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
