Nvent Hoffman

Nvent Hoffman Q18138PCE Qline E, Type 4X - Q18138PCE

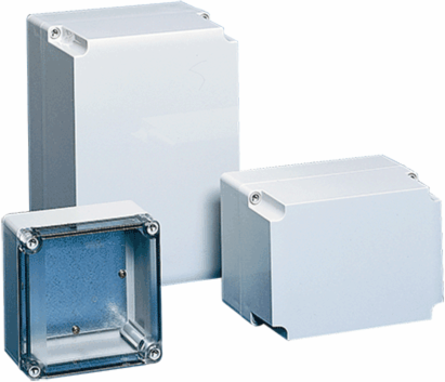

Qline E, Type 4X - Q18138PCE
  • MPN: Q18138PCE
  • UPC: 783510141196
  • PPN: HOF-Q18138PCE

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$86.37/ EA

Description

Qline™ E Enclosures house larger controls, provide additional size-range options and offer greater internal mounting flexibility than smaller Qline products. Featuring contoured bodies with flush cover screws, they are functional in corrosive environments and can withstand occasional submersion. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.

Features

  • Body is impact-resistant polycarbonate for PCE series and ABS for ABE series
  • Opaque and clear covers are impact-resistant polycarbonate for PCE, opaque covers are ABS for ABE series
  • Polycarbonate and ABS material is easily punched, drilled, filed or sawed
  • Cross-point flush cover screws are strong, durable polyamide
  • Cover includes a molded-in wire lead hole
  • Mounting tracks along body side walls for PC card installation
  • Molded internal pads for mounting optional panels, rails and other components
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Material is halogen free

Specifications

Specifications

Bulletin Number
Q41
Model Code
1.0
Catalog Number
Q18138PCE
B in.
4.67
K in.
0.98
Panel Size D x E in.
5.83 x 3.86
Q in.
3.94
Mounting G x H in.
6.30 x 4.33
Panel
Q1813PE
Standards
UL 508A Listed; Type 4, 4X, 6, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 6, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || NEMA/EEMAC Type 4, 4X, 6, 12, 13 || CSA File No. 42186: Type 4, 4X, 12, 13 || IEC 60529, IP67 || NEMA/EEMAC Type 4, 4X, 6, 12, 13 || IEC 60529, IP67
Material14119
Ship Wt. Std. Pkg. (lbs)False
A in.6.63
C in.2.65
F in.2.40
S in.5.51
P in.3.54
External Dimensions L x W in.6.89 x 4.92
Cover StyleOpaque
