nVent Hoffman Q303018ABICC QLine I Enclosure Clear Cover Type 4X, 300x300x180mm, ABS

MPN: Q303018ABICC
UPC: 783510183493
PPN: HOF-Q303018ABICC
UNSPSC: 39121309

$212.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

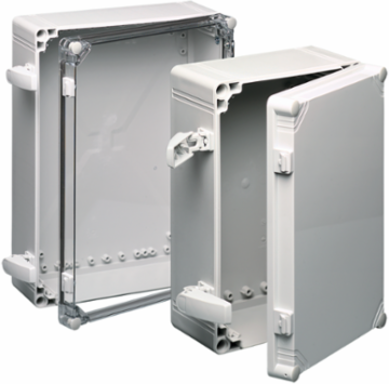

QLine I polycarbonate/ABS larger sized enclosures ideal in corrosive environments protecting controls. This QLine I Enclosure Clear Cover Type 4X, Q303018ABICC item measures 300x300x180mm with a material of ABS.

Features

Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
Polycarbonate and ABS material is easily punched, drilled, filed or sawed
Mounting holes molded directly under cover screws
Molded internal pads for mounting optional panels, rails and other components
Molded internal rails for mounting adjustable-depth panel kit
Screws provided for mounting optional panel
Optional extension rings are molded polycarbonate
Cover includes a molded-in hole for wire lead
Seamless foam-in-place gasket assures water-tight and dust-tight seal
Material is halogen free
Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	300
Protection Rating	NEMA Type 12
Finish	Smooth Gloss
Color Code	RAL 7035
Mounting (G x H)	280 x 280
Latch Type	Screw Cover
NEMA Rating	4X Watertight, corrosion-resistant
Sub Brand	QLine
Size	11.81 x 11.81 in
