nVent Hoffman

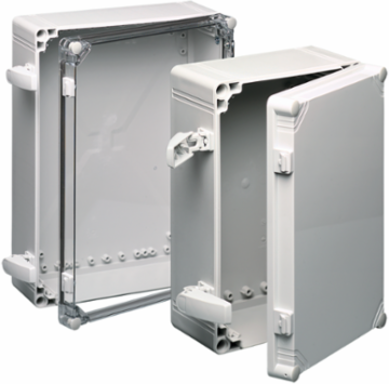

nVent Hoffman Q403018ABICC QLine I Enclosure Clear Cover Type 4X, 400x300x180mm, ABS

QLine I Enclosure Clear Cover Type 4X, 400x300x180mm, ABS
  • MPN: Q403018ABICC
  • UPC: 783510183691
  • PPN: HOF-Q403018ABICC
  • UNSPSC: 39121309

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$260.62/ EA

Description

QLine I polycarbonate/ABS larger sized enclosures ideal in corrosive environments protecting controls. This QLine I Enclosure Clear Cover Type 4X, Q403018ABICC item measures 400x300x180mm with a material of ABS.

Features

  • Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
  • Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
  • Polycarbonate and ABS material is easily punched, drilled, filed or sawed
  • Mounting holes molded directly under cover screws
  • Molded internal pads for mounting optional panels, rails and other components
  • Molded internal rails for mounting adjustable-depth panel kit
  • Screws provided for mounting optional panel
  • Optional extension rings are molded polycarbonate
  • Cover includes a molded-in hole for wire lead
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Material is halogen free
  • Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
  • Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
300
Protection Rating
NEMA Type 12
Finish
Smooth Gloss
Color Code
RAL 7035
Mounting (G x H)
380 x 280
Latch Type
Screw Cover
NEMA Rating
4X Watertight, corrosion-resistant
Sub Brand
QLine
Size
15.75 x 11.81 in
Height (H)400
Depth (D)180
Product FamilyQLine
ColorLight Gray
Thickness (T)4
Cover StyleClear
IP RatingIP66
Weight5.8
MaterialABS
