nVent Hoffman Q402018ABICC QLine I Enclosure Clear Cover Type 4X, 400x200x180mm, ABS
- MPN: Q402018ABICC
- UPC: 783510183295
- PPN: HOF-Q402018ABICC
- UNSPSC: 39121309
CAD
$216.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

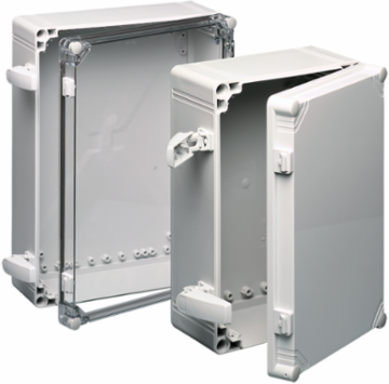

QLine I polycarbonate/ABS larger sized enclosures ideal in corrosive environments protecting controls. This QLine I Enclosure Clear Cover Type 4X, Q402018ABICC item measures 400x200x180mm with a material of ABS.
Features
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable-depth panel kit
- Screws provided for mounting optional panel
- Optional extension rings are molded polycarbonate
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 200
- Protection Rating
- NEMA Type 12
- Finish
- Smooth Gloss
- Color Code
- RAL 7035
- Mounting (G x H)
- 380 x 180
- Latch Type
- Screw Cover
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Sub Brand
- QLine
- Size
- 15.75 x 7.87 in
Height (H)400
Depth (D)180
Product FamilyQLine
ColorLight Gray
Thickness (T)4
Cover StyleClear
IP RatingIP66
Weight4.5
MaterialABS
