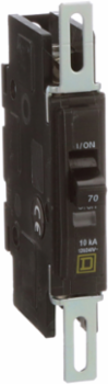

Square D QOU170 Miniature Circuit Breaker, 70A, 1 Pole, 120/240 VAC, 10kA
- MPN: QOU170
- UPC: 785901509868
- PPN: SCH-QOU170
- UNSPSC: 39121603
CAD
$329.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 70A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA.
Features
- Ideal for OEM applications and have the Square D’s unique Visi-Trip Indicator feature.

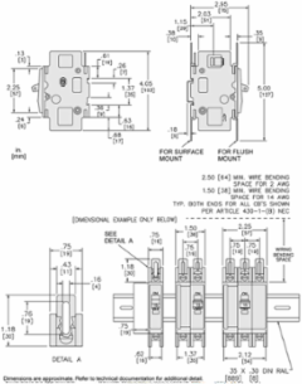

- Can be DIN rail-mounted, surface-mounted, or flush-mounted.
- Simple design and clear instructions help you install correctly.
- Single handle with internal common trip.
- Field-installable quick connectors.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 2.95 in |
|---|
Complementary Attributes
| Ue Rated Operational Voltage | 120/240 V AC, 120 V AC48 V DC |
|---|
| Line Rated Current | 70 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, OM, SC |
|---|---|
| Electrical Connection | slotted box lugs, line side, slotted box lugs, load side |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Energy Efficiency Optimized | False |
| Number Of Poles | 1P |
| Product Or Component Type | miniature circuit-breaker |
| Returnability | Yes |
| Tightening Torque | 45-45 lbf.in (14 AWG...2 AWG) |
| Width Nominal | 0.75 in |
| Customs Code | 8536200040 |
| Halogen Free Status | Halogen free product |
| Persona Type Names | End User, Consumer, Original Equipment Manufacturer, Electrician |
|---|---|
| Certificate Agency | UL Listed, CSA, IEC |
| Local Publishable Date | 2025-11-18 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2534 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Awg Gauge | 12 AWG...2/0 AWG aluminium/copper |
| Circuit Breaker Type | standard |
| Mounting Mode | unit mount |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QOU |
| Sustainable Packaging | No |
| Height Nominal | 4.05 in |
| Nbr. Of Units In Pkg. | 1 |
| Short Circuit Current | 10 kA |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Halogene Performance | Halogen free product |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP2111016EN |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2111016EN |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | miniature circuit-breaker |
|---|
| Range Of Product | QOU |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
