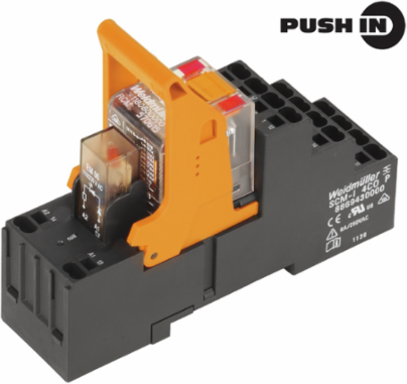

Weidmuller 8921100000 RIDE Releay Module, 115V AC, 12A, 2 CO Contacts, IP20

MPN: 8921100000
PPN: WDM-8921100000

$48.39

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

RIDERSERIES RCM, Relay module, Number of contacts: 2 CO contact with test button AgNi 90/10, Rated control voltage: 115 V AC, Continuous current: 12 A, PUSH IN

Documentation & Downloads

Specifications

General Data

Rail	TS 35
Mechanical switch position indicator	Yes

Test button	yes (lockable)
Colour	black

Approvals

Approvals	CE, DNV GL, EAC

ROHS	Conform

Dimensions And Weights

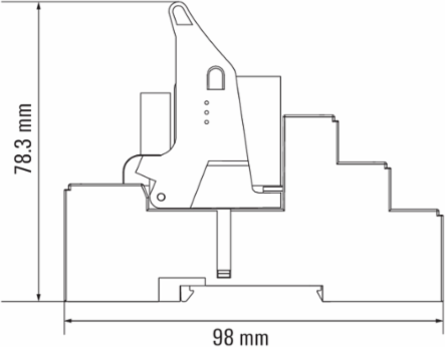

Width	28 mm
Height	98 mm
Depth	78.3 mm
Net weight	98.4 g

Width (inches)	1.102 inch
Height (inches)	3.858 inch
Depth (inches)	3.083 inch

Connection Data

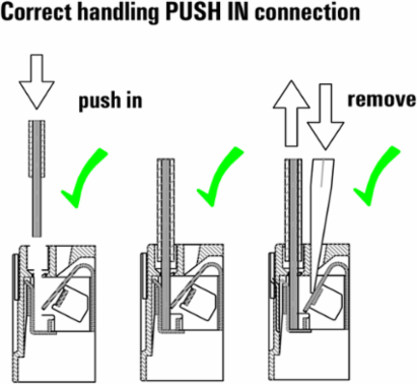

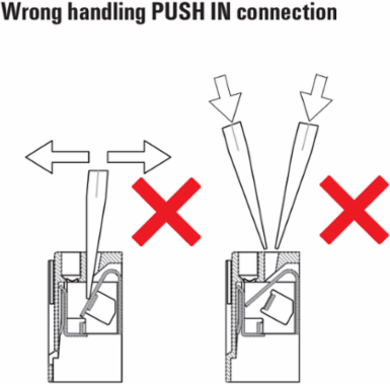

Wire connection method	PUSH IN
Clamping range, rated connection	1.5 mm²
Clamping range, max.	1.5 mm²
Wire cross-section, solid, max.	1.5 mm²
Wire connection cross section, finely stranded, max.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.75 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	0.75 mm²

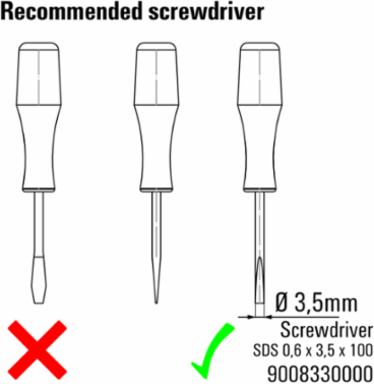

Blade size	0.6 x 3.5 mm

Stripping length, rated connection	12 mm
Clamping range, min.	0.75 mm²
Wire cross-section, solid, min.	0.75 mm²
Wire connection cross-section, finely stranded, min.	0.75 mm²
Wire cross-section, finely stranded, max. (AWG)	AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	0.75 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	1 mm²

Contact Data

Contact type	2 CO contact with test button (AgNi 90/10)

Mechanical service life	AC coil 20 x 106 switching cycles, DC coil 30 x 106 switching cycles

Input

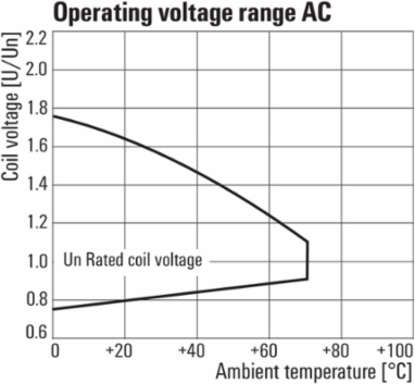

Rated control voltage	115 V AC
Power rating	1.0 VA
Coil resistance	4845 Ω ± 12 %

Rated current AC	8.8 mA
Pull-in/drop-out voltage, typ.	92 V / 34.5 V AC
Status indicator	red LED

Classifications

ETIM 6.0	EC001437
eClass 9.0	27-37-16-01
eClass 10.0	27-37-16-01

ETIM 7.0	EC001437
eClass 9.1	27-37-16-01
UNSPSC	30-21-18-01

Output

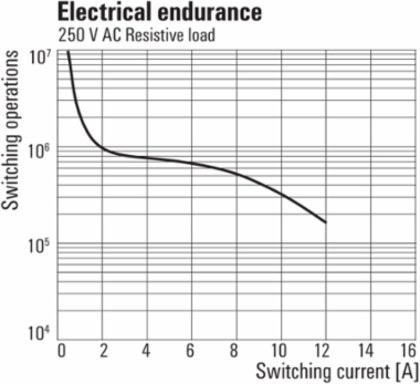

Rated switching voltage	240 V AC

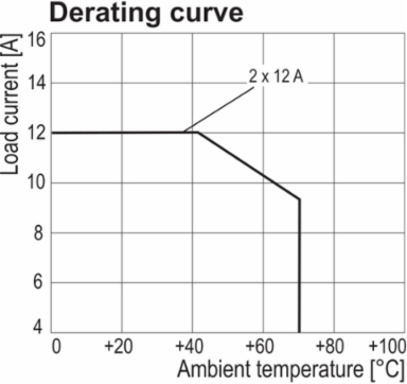

Continuous current	12 A
AC switching capacity (resistive), max.	3000 VA
Switch-on delay	≤ 15 ms
Min. switching power	1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V

Max. switching voltage, AC	400 V
Inrush current	24 A / 20 ms

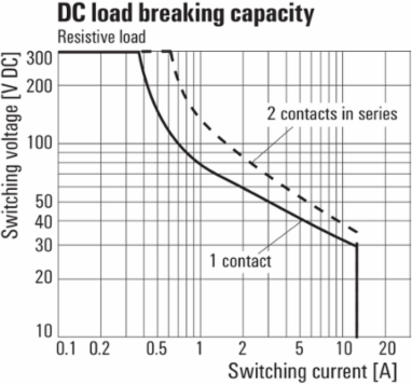

DC switching capacity (resistive), max.	288 W @ 24 V
Switch-off delay	≤ 10 ms
Max. switching frequency at rated load	0.1 Hz

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Insulation Coordination

Rated voltage	250 V
Pollution severity	2
Protection degree	IP20
Creepage and clearance distance input – output	≥ 4 mm
Dielectric strength of open contact	1.2 kVeff /1 min.

Surge voltage category	III
Insulating material group	IIIa
Dielectric strength, Input/Output	2.5 kVeff / 1 Min.
Dielectric strength of neighbouring contacts	2.5 kVeff / 1 Min.
Impulse withstand voltage	5 kV (1.2/50 µs)

Temperatures

Humidity	40 °C / 93 % rel. humidity, no condensation
Operating temperature, min.	-40 °C
Storage temperature, min.	-40 °C
Storage temperature	-40 °C...70 °C
