Weidmuller 8871030000 RCIKIT 24VDC 2CO LD
Weidmuller 8871030000 RCIKIT 24VDC 2CO LD
- MPN: 8871030000
- PPN: WDM-8871030000
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$21.90/ EA
Description

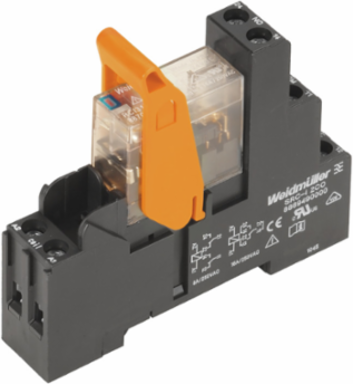

RIDERSERIES RCI, Relay module, Number of contacts: 2 CO contact AgNi 90/10, Rated control voltage: 24 V DC, Continuous current: 8 A, Screw connection
Specifications
General Data
- Rail
- TS 35
- Mechanical switch position indicator
- No
Test buttonNo
Colourblack
Approvals
- Approvals
- CE, DNV GL, EAC
ROHSConform

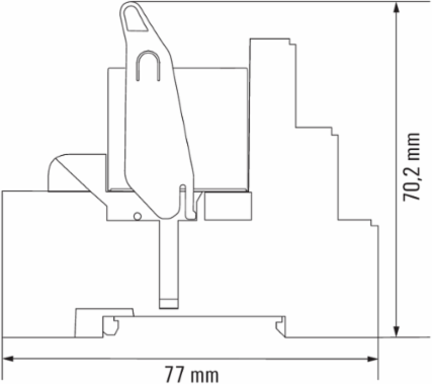

Dimensions And Weights
- Width
- 15.8 mm
- Height
- 77 mm
- Depth
- 70.2 mm
- Net weight
- 61.8 g
Width (inches)0.622 inch
Height (inches)3.031 inch
Depth (inches)2.764 inch
Connection Data
- Wire connection method
- Screw connection
- Tightening torque, min.
- 0.5 Nm
- Clamping range, rated connection
- 2.5 mm²
- Clamping range, max.
- 2.5 mm²
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 2.5 mm²
- Wire cross-section, finely stranded, two clampable wires, max.
- 1.5 mm²
Stripping length, rated connection8 mm
Tightening torque, max.0.7 Nm
Clamping range, min.1 mm²
Wire cross-section, solid, min.1 mm²
Wire connection cross-section, finely stranded, min.1 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.1 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.1 mm²
Wire connection cross section, finely stranded, two clampable wires, min.1 mm²
Blade sizesize PZ1
Contact Data
- Contact type
- 2 CO contact (AgNi 90/10)

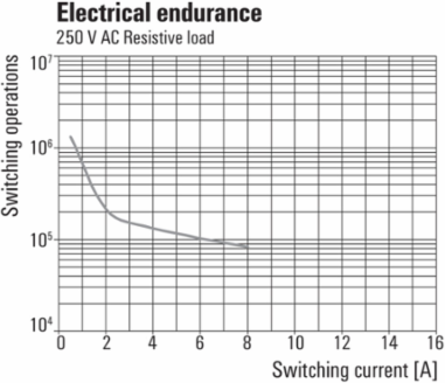

Mechanical service lifeAC coil 5 x 106 switching cycles, DC coil 10 x 106 switching cycles
Input
- Rated control voltage
- 24 V DC
- Power rating
- 420 mW
- Coil resistance
- 1440 Ω ± 10 %
- Protective circuit
- Free-wheeling diode
Rated current DC16.7 mA

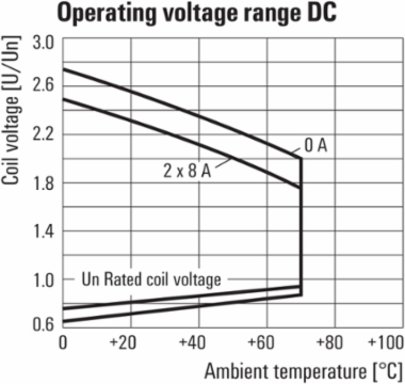

Pull-in/drop-out voltage, typ.16.8 V / 2.4 V DC
Status indicatorGreen LED
Classifications
- ETIM 6.0
- EC001437
- eClass 9.0
- 27-37-16-01
- eClass 10.0
- 27-37-16-01
ETIM 7.0EC001437
eClass 9.127-37-16-01
UNSPSC30-21-19-17
Output
- Rated switching voltage
- 250 V AC

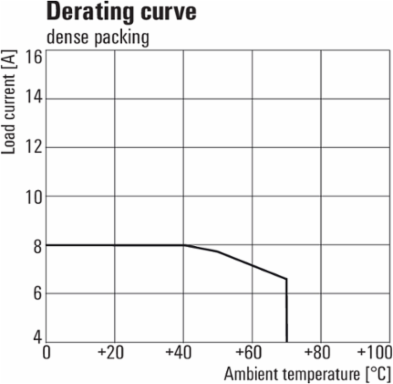

- Continuous current
- 8 A
- AC switching capacity (resistive), max.
- 2000 VA
- Switch-on delay
- ≤ 10 ms
- Min. switching power
- 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
Max. switching voltage, AC400 V
Inrush current15 A / 4 s

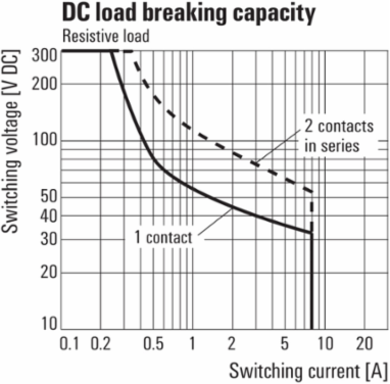

DC switching capacity (resistive), max.192 W @ 24 V
Switch-off delay≤ 6 ms
Max. switching frequency at rated load0.1 Hz
Product Information
- Product information
- IP20 without connected conductor at complete opened clamping yoke connection.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Rated voltage
- 250 V
- Pollution severity
- 2
- Protection degree
- IP20
- Creepage and clearance distance input – output
- ≥ 8 mm
- Dielectric strength of open contact
- 1 kVeff / 1 min
Surge voltage categoryIII
Insulating material groupIIIa
Dielectric strength, Input/Output5 kVeff / 1min
Dielectric strength of neighbouring contacts2.5 kVeff / 1 Min.
Impulse withstand voltage5 kV (1.2/50 µs)
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...70 °C
Operating temperature, max.70 °C
Storage temperature, max.70 °C
Operating temperature-40 °C...70 °C
Further Details Of Approvals / Standards
- Standards
- DIN EN 50178
- Certificate no. (CSA) base
- 249409-2295474
- Certificate no. (cURus) relay
- E224238
Certificate no. (CSA) relay249409-2426937
Certificate No. (DNVGL)TAA000011A
Certificate no. (cURus) baseE223759
