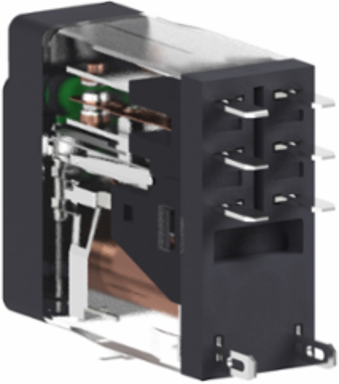

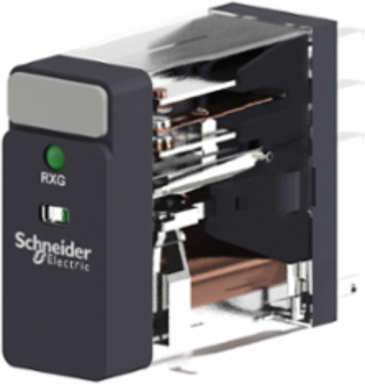

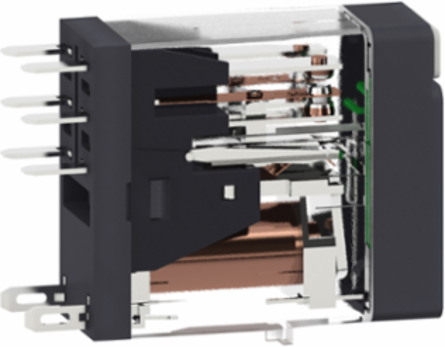

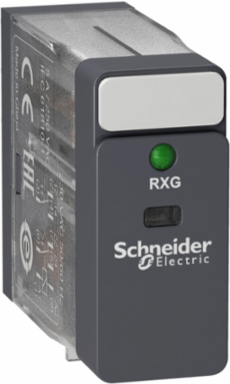

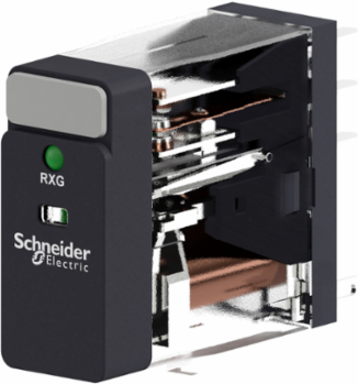

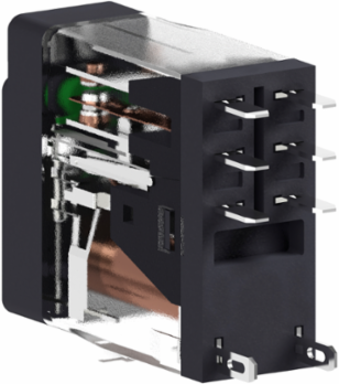

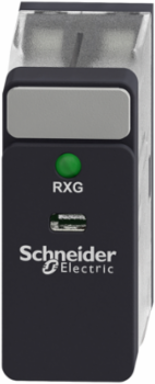

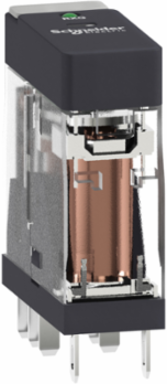

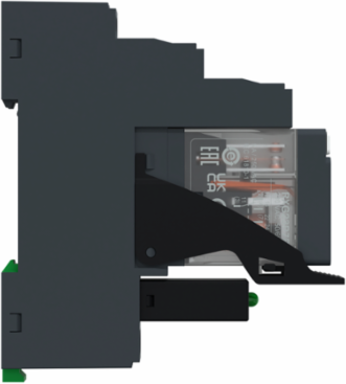

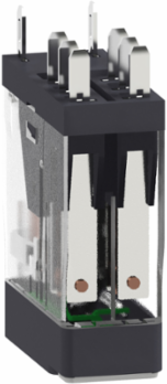

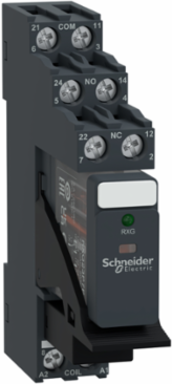

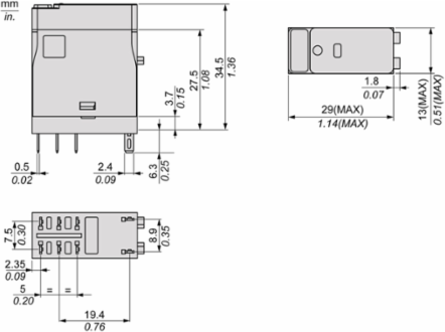

Schneider Electric RXG23P7 Harmony Electromechanical Relay, 5A, 230V AC, 2 C/O, LED Indicator

MPN: RXG23P7
PPN: SCH-RXG23P7
UNSPSC: 39122326

$22.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

"This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night."

Features

Reduces size of enclosures while increase machine reliability
Flexible design for space saving with 0.63in width
Single step lockable testing function
Easy to use
High performance ensuring machine and system availability
Wide range to meet most industrial applications
Mechanical durability of 10 million cycles
Electrical durability of 100,000 cycles
IP40 degree of protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Weight	33 g

Complementary Attributes

Ie Rated Operational Current	5 A at 250 V (AC) conforming to IEC, 5 A at 30 V (DC) conforming to UL, 5 A at 30 V (DC) conforming to IEC5 A at 250 V (AC) conforming to UL
Ui Rated Insulation Voltage	250 V IEC300 V CSA, 300 V UL
Line Rated Current	5 A
Maximum Switching Voltage	250 V AC30 V DC
Rated Current	5 A

Uc Control Circuit Voltage	AC, 230 V
Control Circuit Type	AC
Maximum Switching Capacity	1250 VA
Minimum Switching Capacity	50 mW at 10 mA, 5 V DC
Uimp Rated Impulse Withstand Voltage	1200 V AC between contacts with micro disconnection6000 V between coil and contact with reinforced insulation1500 V between terminals and case with basic insulation4000 V between poles with basic insulation

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Dielectric Strength	1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 3000 V AC between poles with basic insulation1300 V AC terminals and case with basic insulation
Operating Rate	<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Certificate Agency	CSA, CE, UL, EAC, DNV
Carbon Footprint Of The Distribution Phase A4	0.06551564855924241, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.0007132401944399417
Carbon Footprint Of The Use Phase B2 B3 B4 B6	13 kg CO2 eq., 13.288504109926395
Local Publishable Date	2026-08-10
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2208012EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Resistance	23500 Ohm at 23 °C +/- 15 %
Contacts Material	silver alloy (AgSnO2In2O3)
Control Type	without lockable test button
Insulation Resistance	1000 MOhm at 500 V DC
Local Signalling	flag
Operating Time	20 ms
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT I
Relay Type	interface relay
Returnability	Yes
Series Name	RXG series
Software Version	v6.1
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	14 kg CO2 eq.
Vibration Resistance	3 gn +/- 0.75 mm 10-150 Hz)in operation5 gn +/- 0.75 mm 10-150 Hz)not in operation
Database Version	2023-02
Nbr. Of Units In Pkg.	1
Ithe Conventional Enclosed Thermal Current	5 A -40-55 °C
Functional Unit Description	Harmony RXG relays are interface plug-in relays with faston pins for better reliability and robust installation. This relays offer a broad range of coil voltages from 6 V to 110 Va and 24 V to 230 Va. The RXG interface relay range comprises 10 A relays with 1 CO contact and 5 A relays with 2 CO contacts and it also offers sockets with separate or mixed contact terminals, built-in plastic maintaining clamp. Product is adhering to IEC 61810-1 & UL 508 standards.
Functional Unit Unit	Unit
Recyclability Potential In %	70

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Durability	100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C
Contacts Composition	2 C/O
Drop Out Voltage Threshold	>= 0.3 Uc AC, >= 0.3 Uc AC>= 0.3 Uc AC, >= 0.3 Uc AC
Carbon Footprint Of The End Of Life Phase C1 To C4	0.06466599441775461, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.2 kg CO2 eq., 0.1841355813711413
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Resistance	100 mOhm
Contacts Type And Composition	2 C/O
Electrical Insulation Class	class F
Load Current	5 A 250 V AC
Mechanical Durability	10000000 cycles
Overvoltage Category	III
Product Or Component Type	plug-in relay
Range Of Product	Harmony Electromechanical Relays
Reset Time	20 ms
Safety Reliability Data	B10d = 100000
Shape Of Pin	flat (faston type)
Status Led	with
Test Levels	level A group mounting
Utilisation Coefficient	20 %
Control Circuit Voltage	230 V
Data Source	extrapolated product
Customs Code	8536490055
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	13.603534574468974
Environmental Disclosure	ENVPEP2208012EN
Ip Degree Of Protection	IP40
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP2208012EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2208012EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Relative Humidity	10-85 %
Pep Verification Date	2023-11-27
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
