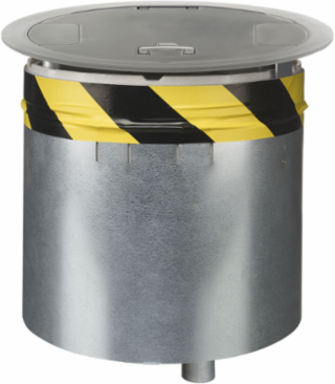

Hubbell Premise Wiring S1R10PTZNKL 10 Inch Fire-Rated Recessed Poke-Through Kit with (2) Duplex Outlets
- MPN: S1R10PTZNKL
- UPC: 783585548302
- PPN: HBL-S1R10PTZNKL
- UNSPSC: 39121328
CAD
$3968.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fire Rated Poke Throughs, Recessed 10" Series, Kit, Includes (1) S1R10PTFIT, (1) S1R10CVRNKL, (2) S1R10PSPZ, (2) S1R10PSPREPBRKT, (4) S1R10CBFPT, (3) S1R10PBFBLANK, (1) S1R10PBF075, (1) S1R10CENTERDIV, (1) S1R10PERIMDIV
Features
- For use with a 10.00” to 10.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- (2) 20A pre-wired receptacles
Documentation & Downloads
Specifications
Additional
- Receptacle Amperage
- 20A
- Cover Load Rating
- 1,000 lbs Static Load Through 3 in. Diameter Mandrel
- Hole Size Compatibility
- 10.00 to 10.12 in.
- Number of Outlets
- (2) Prewired Duplex, 24 in. Leads
- Mounting Type
- 10 in. Core Hole
- Material
- Fabricated
- Cover Finish
- Satin Nickel Plated
- Bottom Feed Plates and Dividers Material
- Pre-Galvanized Steel
- Maximum Copper Cross Section - Center Chamber
- 0.0978 sq. in.
- Material - Mounting Hardware
- Mounting Hardware Included
- Standard
- cULus Listed; Meets ADA Standards; UL 514A Listed
- Application
- Concrete
- Style
- FRPT Kits
Fire RatingUp to 2 Hour
Size10 in.
Minimum Concrete Floor Thickness2.25 in.
Cable EntryThrough Cover
Plate StyleAccepts S1R10xx Series
Cover MaterialCast Aluminum
Fitting MaterialPre-Galvanized Steel, Intumescent
Sub-Plates and Brackets MaterialPre-Galvanized Steel, White Painted
Maximum Copper Cross Section - Perimeter Chamber0.0408 sq. in.
Country of OriginUS
ColorNickel
Type10 in. Recessed Rated Poke Through Kit
Sub BrandSystemOne Recessed
