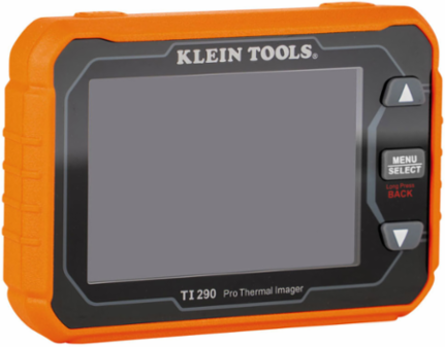

Klein Tools TI290 Rechargeable Pro Thermal Imager, 49,152 Pixels, -4° to 752°F Temp Range, Wi-Fi Enabled
- MPN: TI290
- UPC: 092644693625
- PPN: KLT-TI290
- UNSPSC: 41115321
CAD
$998.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

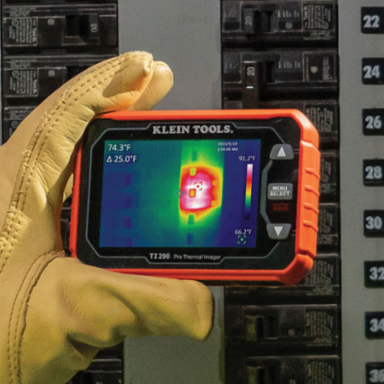

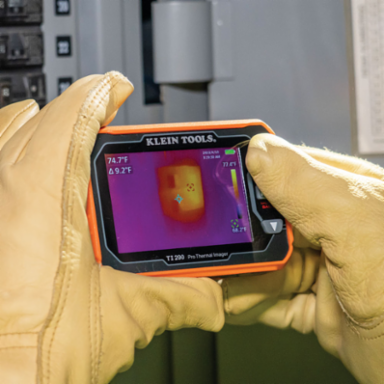

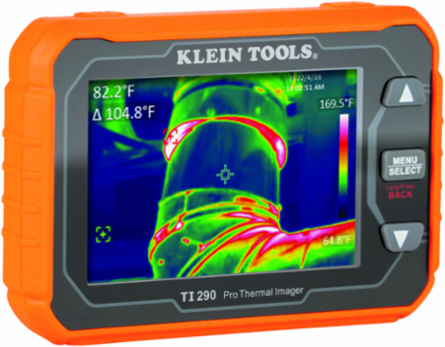

The Klein Tools TI290 is a high resolution, Wi-Fi enabled, professional model USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 76,800 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. App is available for free in Google Play™ store and in the App Store.
Features

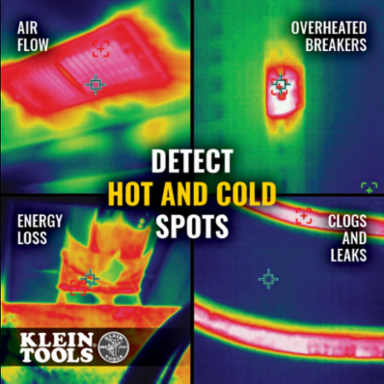

- Thermal Imager has over 76,800 pixels to troubleshoot hot and cold spots
- Easily capture, store and share thermal images with Wi-Fi capabilities
- User selectable high and low temperature alarms from -40 to 752-Degree Fahrenheit (-4 to 400-Degree Celsius)
- Adjustable emissivity from 0.01 to 0.99
- Select color palettes to best capture the event; ironbow, rainbow, or grayscale
- Rechargeable lithium-ion battery
- App is available for free in Google Play™ store and in the App Store

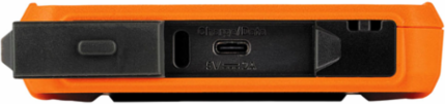

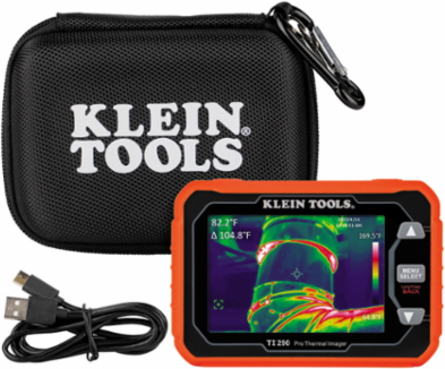

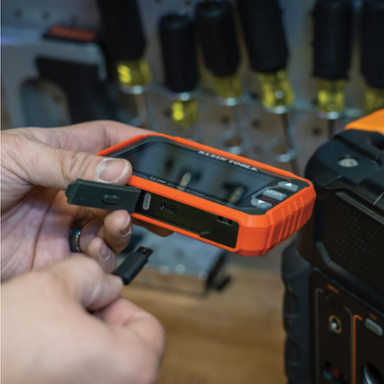

- Includes thermal imager, USB-C charging cable, molded soft-storage case with carabiner, and instructions
- Durable 6.6-Foot (2 m) drop test protection
- Wi-Fi Transfer, High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Color Palettes
Documentation & Downloads
Specifications
Key Specifications
- Maximum Frames per Second
- <9 Hz
- Type
- Thermal Imager
- Sensor Type
- VOx Microbolometer
- Display
- 3.5" (8.9 cm) TFT LCD
- Accuracy
- ±2°C (±3.6°F) or 2%, Whichever is Greater
- Color Palettes
- Ironbow, Rainbow, Grayscale
- Field of View
- 56° +/- 2.8°
- Sensor Resolution
- 76,800 Pixels
- Photo Capture
- Yes
- Included
- Rechargeable Thermal Imager, USB Charging Cable,Molded Soft-Storage Case with Carabiner, and Instructions
- Laser Sighting
- No
- Overall Length
- 11.4 cm (4.5 Inch)
- Overall Height
- 7.9 cm (3.1 Inch)
- Width
- 3.1000 in
- Weight
- 0.4700 lbs
Temperature Range-40° to 752°F (-4° to 400°C)
Emissivity0.01 to 0.99, Adjustable
Thermal Sensitivity<50 mK
MaterialABS and Electronic Components
StandardsCE and UKCA
Display Resolution480 x 320 Pixels
ApplicationView Hot and Cold Spots for Instant Troubleshooting
Spectral Range8 to 14μm
Memory10,000 Images
BatteriesLithium-Ion
Battery Life5 yr
Overall Width2.8 cm (1.1 Inch)
Height1.0600 in
Depth4.4800 in
