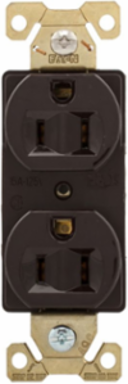

Eaton AH5252B Eaton Arrow Hart extra heavy-duty industrial specification grade duplex receptacle — Color: Brown, Features: Auto-grounding Terminal guards, Face/Body Material: Nylon, NEMA Configuration: 5-15R
- MPN: AH5252B
- UPC: 032664735189
- PPN: COW-AH5252B
CAD
$6.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart extra heavy-duty industrial specification grade duplex receptacle, #14-10 AWG, 15A, Industrial, Flush, 125V, Back and side, Brown, Brass, Nylon, 5-15R, Duplex, Screw, Nylon, Core pack
Specifications
Key Specifications
| Length | 1.3 in |
|---|---|
| Width | 0.85 in |
| Product Type | Extra heavy-duty industrial specification grade |
| Type | Duplex receptacle |
| Voltage Rating | 125V |
| Application | Industrial |
| Wiring Method | Back and side |
| Mounting Method | Flush |
| Style Type | Standard |
| Color | Brown |
| Allowable Wire Size | Side or Back Wiring :#10-14 Copper or Copper Clad Aluminum |
| Torque Rating | 14 lbf-inch |
| Receptacle Type | Duplex |
| Height | 4.19 in |
|---|---|
| Weight | 0.37 lbs |
| Device Type | Receptacle |
| Amperage Rating | 15A |
| Contact Material | Brass |
| Device Grade | Extra heavy-duty industrial specification grade |
| Number Of Wires | 3 |
| Number Of Poles | Two-pole |
| Material | Nylon |
| Connection Type | Screw |
| NEMA Configuration | 5-15R |
| Design Type | Straight blade |
| Product Series | Straightblade Receptacles |
