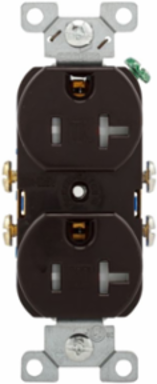

Eaton TR370B-BOX Eaton residential grade duplex rece — Features: Tamper resistant, Allowable Wire Size: Side Wiring: #10-14 Copper or Copper Clad Aluminum, Color: Brown, Face/Body Material: PVC body Impact-resistant thermoplastic face, Style Type: Standard, NEMA Configuration: 5-20R, Packaging Type: ED Box
- MPN: TR370B-BOX
- UPC: 032664729560
- PPN: COW-TR370B-BOX
CAD
$3.92
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton residential grade duplex receptacle, #14-10 AWG, 20A, Commercial, Residential, Flush, 125V, Side wire, Brown, Brass, Impact-resistant thermoplastic face, PVC body, 5-20R, Duplex, Screw, Thermoplastic, ED Box
Specifications
Key Specifications
| Length | 1.31 in |
|---|---|
| Width | 0.74 in |
| Nom Product Type | Residential grade |
| Type | Duplex receptacle |
| Voltage Rating | 125V |
| Application | Commercial/residential |
| Wiring Method | Side wire |
| Mounting Method | Flush |
| Style Type | Standard |
| Color | Brown |
| Allowable Wire Size | Side Wiring: #10-14 Copper or Copper Clad Aluminum |
| Torque Rating | 14 lbf-inch |
| Face/Body Material | PVC body Impact-resistant thermoplastic face |
| Product Series | Straightblade Receptacles |
| Height | 4.19 in |
|---|---|
| Weight | 0.215 lbs |
| Device Type | Receptacle |
| Amperage Rating | 20A |
| Contact Material | Brass |
| Device Grade | Standard grade |
| Number Of Wires | 3 |
| Number Of Poles | Two-pole |
| Material | Thermoplastic |
| Connection Type | Screw |
| NEMA Configuration | 5-20R |
| Design Type | Straight blade |
| Receptacle Type | Duplex |
