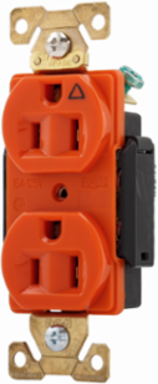

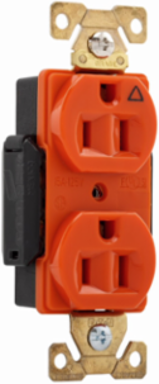

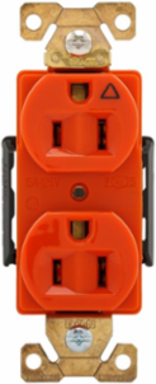

Eaton AHIG5262RN Eaton Arrow Hart extra heavy-duty industrial specification grade duplex rece — Color: Orange, Features: Isolated ground Terminal guards, Face/Body Material: High-impact nylon face Glass-filled nylon base, NEMA Configuration: 5-15R
- MPN: AHIG5262RN
- UPC: 032664349904
- PPN: COW-AHIG5262RN
CAD
$8.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart extra heavy-duty industrial specification grade duplex receptacle,#14 to 10 AWG,15A,Flush,125V,Back and side,Orange,Brass,High-impact nylon face,Glass-filled nylon base,5-15R,Two-pole,three-wire,grounding,Screw,Core pack
Specifications
Key Specifications
| Length | 1.3 in |
|---|---|
| Width | 0.89 in |
| Product Type | Extra heavy-duty industrial specification grade |
| Type | Duplex receptacle |
| Voltage Rating | 125V |
| Application | Industrial |
| Wiring Method | Back and side |
| Mounting Method | Flush |
| Style Type | Standard |
| Color | Orange |
| Allowable Wire Size | Side or Back Wiring :#10-14 Copper or Copper Clad Aluminum |
| Torque Rating | 14 lbf-inch |
| Face/Body Material | High-impact nylon face Glass-filled nylon base |
| Product Series | Straightblade Receptacles |
| Height | 4.19 in |
|---|---|
| Weight | 0.37 lbs |
| Device Type | Receptacle |
| Amperage Rating | 15A |
| Contact Material | Brass |
| Device Grade | Extra heavy-duty industrial specification grade |
| Number Of Wires | 3 |
| Number Of Poles | Two-pole |
| Material | Glass-filled nylon |
| Connection Type | Screw |
| NEMA Configuration | 5-15R |
| Design Type | Straight blade |
| Receptacle Type | Two-pole, three-wire, grounding |
