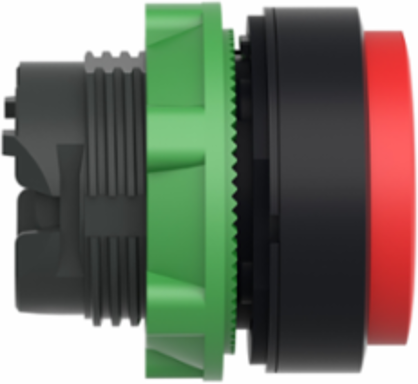

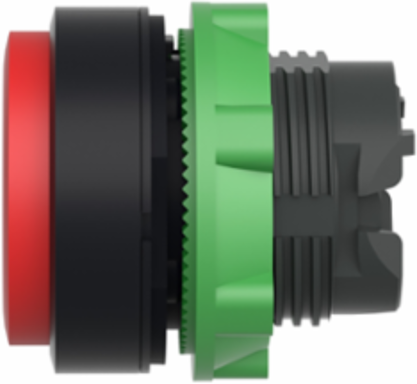

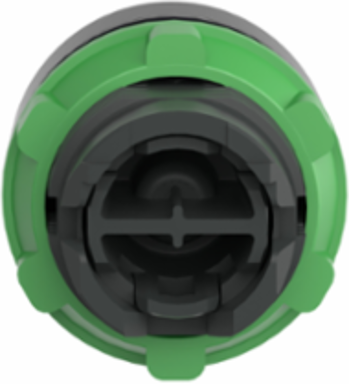

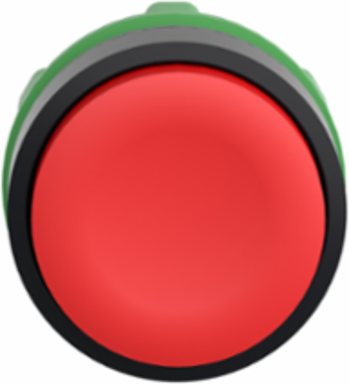

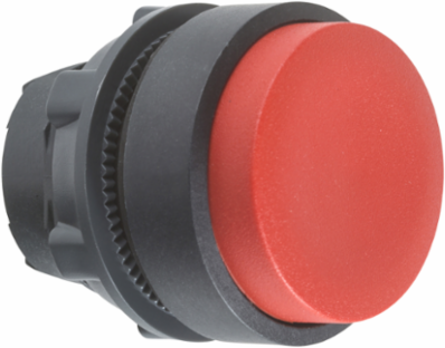

Schneider Electric ZB5AL4 Head for non illuminated push button, Harmony XB5, plastic, projecting, red, 22mm, spring return, unmarked

Head for non illuminated push button, Harmony XB5, plastic, projecting, red, 22mm, spring return, unmarked
Head for non illuminated push button, Harmony XB5, plastic, projecting, red, 22mm, spring return, unmarked
Head for non illuminated push button, Harmony XB5, plastic, projecting, red, 22mm, spring return, unmarked
Head for non illuminated push button, Harmony XB5, plastic, projecting, red, 22mm, spring return, unmarked
Head for non illuminated push button, Harmony XB5, plastic, projecting, red, 22mm, spring return, unmarked
  • MPN: ZB5AL4
  • PPN: SCH-ZB5AL4

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$13.94/ EA

    Description

    This red projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

    Specifications

    Environment

    Product Certifications
    GL || UL listed || DNV || CSA || LROS (Lloyds register of shipping) || BV
    Ambient Air Temperature For Operation
    -40-70 °C
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Ip Degree Of Protection
    IP66 IEC 60529 || IP67 || IP69 || IP69K
    Ambient Air Temperature For Storage
    -40-70 °C
    Nema Degree Of Protection
    NEMA 13 || NEMA 4X
    Ik Degree Of ProtectionIK03 conforming to IEC 50102
    StandardsJIS C8201-5-1 || UL 508 || IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
    Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Overvoltage Categoryclass II IEC 60536
    Protective TreatmentTH

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1710010EN
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    Circularity Profile
    ENVEOLI1710010EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationFree of Substances of Very High Concern above the threshold
    China Rohs RegulationX
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Complementary

    Electrical Composition Code
    C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    Cad Overall Height
    29 mm
    Mechanical Durability
    10000000 cycles
    Cad Overall Width
    29 mm
    Net Weight0.019 kg
    Device Presentationbasic element
    Station NameXALD 1...5 cut-outs || XALK 2...5 cut-outs
    Cad Overall Depth33 mm

    Specifications

    Range Of Product
    Harmony XB5
    Type Of Operator
    spring return
    Shape Of Signaling Unit Head
    round
    Sale Per Indivisible Quantity
    1
    Operator Profile
    red projecting, unmarked
    Mounting Diameter22 mm
    Product Or Component Typehead for non-illuminated push-button
    Head Typestandard
    Bezel Materialdark grey plastic
    Device Short NameZB5
