Harmony XB6 Red Rectangular Flush Pushbutton 16mm 1NO + 1NC IP65
Schneider Electric

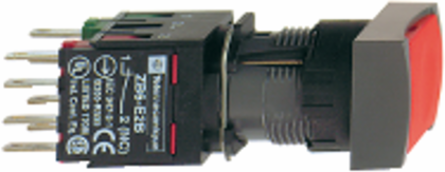

Schneider Electric XB6DA45B Harmony XB6 Red Rectangular Flush Pushbutton 16mm 1NO + 1NC IP65

  • MPN: XB6DA45B
  • PPN: SCH-XB6DA45B
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $40.32

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Experience the reliability and versatility of the Harmony XB6 push button from Schneider Electric, designed for a wide range of automation and control applications. This complete push button features a striking red rectangular flush design and is equipped with a spring return mechanism, providing both 1 normally open (NO) and 1 normally closed (NC) contact configuration for flexible operation. Engineered to withstand harsh environments, it boasts an IP65 rating for dust and water resistance, along with exceptional mechanical durability of up to 2 million cycles, ensuring long-lasting performance in demanding conditions. With a compact size of 16mm and a robust construction, this push button is an ideal choice for panel builders and machinery OEMs looking for a dependable control solution.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Mexico

    Physical Attributes

    Cad Overall Depth
    57 mm
    Cad Overall Width
    24 mm
    Cad Overall Height18 mm

    Complementary Attributes

    Ie Rated Operational Current
    3 A 120 V, AC-15, B300 IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
    Uimp Rated Impulse Withstand Voltage
    4 kV IEC 60947-1
    Ui Rated Insulation Voltage250 V 3)IEC 60947-1

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Customizable
    1, no
    Operating Force
    3.5 N NO changing electrical state, 4.5 N NC changing electrical state
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Vibration Resistance
    +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Certificate Agency
    GOST, CCC, CSA, UL
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Bezel Material
    plastic
    Contact Operation
    slow-break
    Contacts Type And Composition
    1 NO + 1 NC
    Electrical Reliability
    λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
    Mechanical Durability
    2000000 cycles
    Operating Position
    any position
    Positive Opening
    with IEC 60947-5-1 appendix K
    Product Or Component Type
    complete push-button
    Range Of Product
    Harmony XB6
    Sale Per Indivisible Quantity
    1
    Short Circuit Protection
    6 A cartridge fuse gG
    Type Of Operator
    spring return
    Connections Terminals
    Faston connectors 2.8 x 0.5 mm
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Durability1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Operating Travel1 mm NO changing electrical state), 2 mm NC changing electrical state), 3.5 mm total travel)
    Terminals Description Iso N 1(13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
    Ie Rated Operational Current3 A 120 V, AC-15, B300 IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Compatibility CodeXB6
    Contacts Materialsilver alloy (Ag/Ni)
    Device Short NameXB6
    Electrical Shock Protection Classclass II conforming to IEC 61140
    Mounting Diameter16 mm
    Operator Profilered flush, unmarked
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTC
    ReturnabilityYes
    Shape Of Signaling Unit Headrectangular
    Sustainable PackagingNo
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Warranty In Months18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
    Reach Free Shvc
    Yes
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP65 IEC 60529
    Packaging Without Single Use Plastic
    No
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes

    General Attributes

    Product Or Component Type
    complete push-button
    Range Of ProductHarmony XB6

    ETIM

    ETIM 8
    EC001028
    ETIM 9EC001028

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
