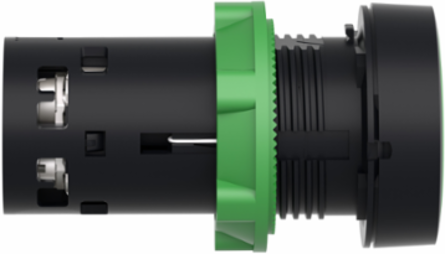

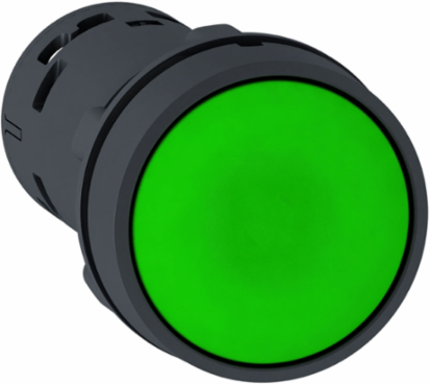

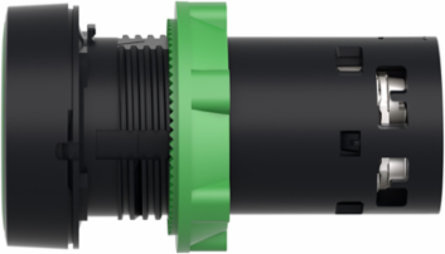

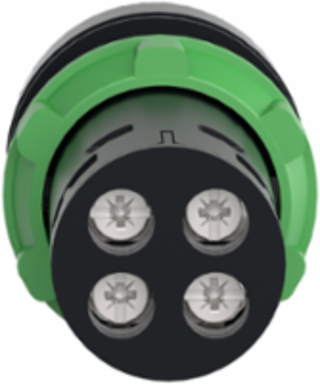

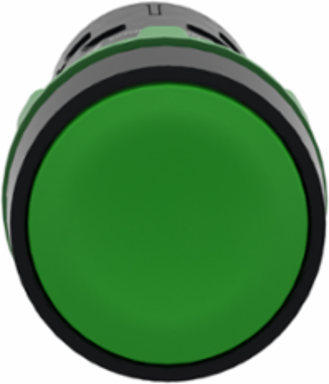

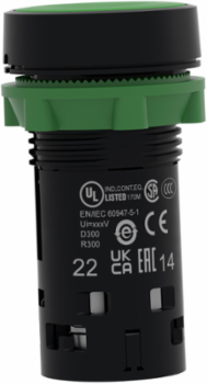

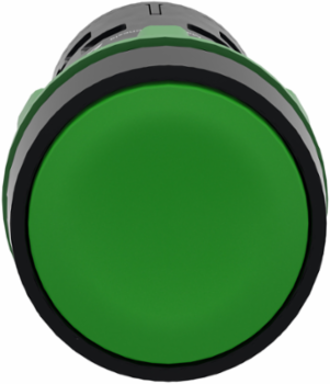

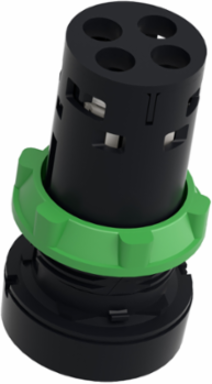

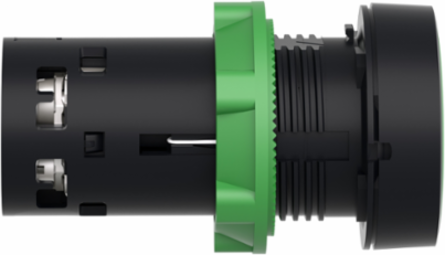

Schneider Electric XB7NA35 Harmony XB7 Green Push Button 22mm Spring Return 1NO+1NC
- MPN: XB7NA35
- PPN: SCH-XB7NA35
CAD
$41.55
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB7, flush monolithic green push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 0.6 A at 120 V AC-14, 0.3 A at 240 V AC-14, 0.22 A at 125 V DC-13, 0.1 A at 250 V DC-13
- Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- Vibration Resistance
- 5 gn 2-500 Hz IEC 60068-2-6
- Electrical Durability
- 1,000,000 cycles IEC 60947-5-1 appendix C
- Positive Opening
- with NC contact IEC 60947-5-1 appendix K
- Ip Degree Of Protection
- IP20 rear face, IP65 front face IEC 60529
- Short-Circuit Protection
- 4 A cartridge fuse gG IEC 60947-5-1
- Electrical Reliability
- λ ≤ 10^-6 at 17 V, 5 mA IEC 60947-5-4

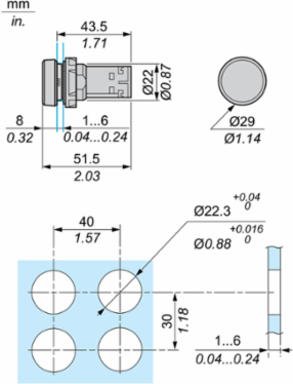

- Mounting Diameter
- 22 mm
- Fixing Center
- >= 30 x 40 mm support panel, metal 1-6 mm, plastic 2-6 mm
- Cad Overall Width
- 29 mm
- Cad Overall Depth
- 51.5 mm
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m, tightening torque 0.8-1.2 N.m IEC 60947-1
- Operator
- spring return
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Shape Of Screw Head
- cross JIS No 1, cross Philips No 1, cross Pozidriv No 1, slotted flat Ø4 mm, slotted flat Ø5.5 mm
- Toxic Heavy Metal Free
- Yes
- Rohs Exemption Information
- Yes
- China Rohs Regulation
- X
- Weee
- Must be disposed properly in EU markets
- Product Certifications
- GOST, CCC
- Ambient Air Temperature For Storage
- -40 to 70 °C
- Sustainable Offer Status
- Green Premium product
- Operator Profile
- green flush, unmarked
Rated Insulation Voltage250 V IEC 60947-1
Shock Resistance50 gn 11 ms half sine wave, 30 gn 18 ms half sine wave IEC 60068-2-27
Mechanical Durability1,000,000 cycles
Contacts1 NO + 1 NC
Contact Operationslow-break
Nema Degree Of ProtectionNEMA 12, NEMA 3 UL 50 E
Overvoltage Categoryclass II IEC 61140
Ambient Air Temperature For Operation-25 to 70 °C
Panel Cut-out Diameter22 mm
Panel Thickness1-6 mm metal, 2-6 mm plastic
Cad Overall Height29 mm
Terminal Typescrew clamp terminals, <= 2 x 1.5 mm² with cable end or 1 x 0.34 to 2 x 2.5 mm² without cable end IEC 60947-1
Device Mountingfixing hole 22.5 mm 22.3 +0.4/0 mm IEC 60947-1
Shape Of Signaling Unit Headround
Materialdouble insulated plastic bezel
Net Weight0.021 kg
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationContains Substances of Very High Concern above threshold
Environmental DisclosureENVPEP1805012EN
StandardsJIS C8201-5-1, UL 508, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-1
Device Presentationmonolithic product
Circularity ProfileENVEOLI1805012EN
