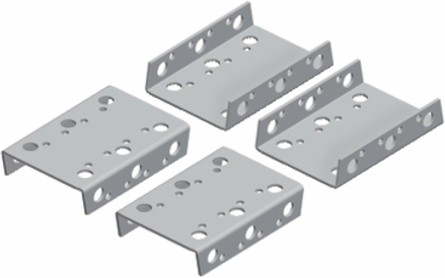

Schneider Electric NSYSFBKR Reinforced Coupling Kit, 70 mm x 105 mm x 150 mm, Set of 4 Connectors
- MPN: NSYSFBKR
- PPN: SCH-NSYSFBKR
- UNSPSC: 39121302
CAD
$222.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Spacial SF reinforced coupling kit, complement to the standard kit in case of heavy loads. 70 x 105 x 150 mm. Multi-purpose application. Mounting location on Depthwise coupling of 2 enclosures and side coupling of 2 enclosures. Fixing mode By screws M6 self tapping.
Features
- It is used together with the coupling kit to reinforce the connection between 2 enclosures when they carry heavy loads.
- Fixing from the inside of the enclosures.
- Material: Zinc-coated steel
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil |
|---|---|
| Width | 4.13 in |
| Depth | 150 mm |
| Height | 2.76 in |
|---|---|
| Weight | 2089 g |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 4 reinforced connector, fixing elements |
| Carbon Footprint Of The Distribution Phase A4 | 0.402128918, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.463202312, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-15 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1912 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | multi-purpose |
| Fixing Mode | by screws M6 self tapping |
| Mounting Support | coupling kit |
| Product Or Component Type | coupling kit |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Database Version | 2022-01 |
| Height Nominal | 70 mm |
| Width Nominal | 105 mm |
| Accessory / Separate Part Category | coupling accessory |
| Customs Code | 7326908688 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Location | depthwise coupling of 2 enclosures, side coupling of 2 enclosures |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 5 kg CO2 eq., 4.910920645 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 9 kg CO2 eq., 9.076952474 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Material | steel |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | Yes |
| Surface Finish | zinc coated |
| Total Lifecycle Carbon Footprint | 15 kg CO2 eq. |
| Data Source | extrapolated product |
| Height Useful | 70 mm |
| Width Real | 105 mm |
| Nbr. Of Units In Pkg. | 1 |
| Silicone Free | No |
| Functional Unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 98 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Silicon Free | No |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Carbon Footprint | 14.85320435 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | coupling kit |
|---|
ETIM
| ETIM 8 | EC002622 |
|---|---|
| ETIM 10 | EC002622 |
| ETIM 9 | EC002622 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
