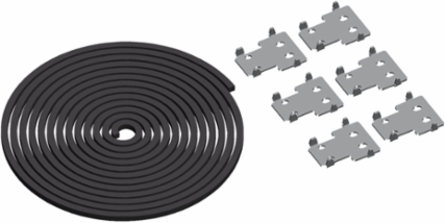

Schneider Electric NSYSFBKSH Coupling Kit for PanelSeT SF Enclosures, 400 mm x 400 mm, IP55 Rating

MPN: NSYSFBKSH
PPN: SCH-NSYSFBKSH
UNSPSC: 39121302

$302.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed for versatility and durability, this coupling kit is an essential accessory for the seamless integration of enclosures within the PanelSeT SF range. It includes everything you need for effective side and depthwise coupling, featuring four spacers, four flat connectors, and essential fixing elements, all engineered to ensure a secure and reliable connection. With an IP55 rating, this kit is built to withstand various environmental conditions, making it suitable for a range of applications in automation and control, as well as data and communication systems. Crafted from high-quality materials, including zinc-coated steel and EPDM sealing gaskets, it guarantees longevity and performance, backed by an 18-month warranty.

Features

It is used for coupling an enclosure of a previous version (OLN or PanelSet 6000)
side-to-side or depthwise with a PanelSet SF enclosure. Fixing from the inside of the enclosures.
Material: Flat connectors and spacers: Zinc-coated steel Sealing gasket: EPDM

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France
Width	15.75 in

Height	2.76 in
Depth	400 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	4 spacer, 4 flat connector, fixing elements, sealing gasket
Mounting Location	side coupling of 2 enclosures, depthwise coupling of 2 enclosures
Local Publishable Date	2026-04-15
Weee Scope	Out
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Fixing Mode	by screws M6 self tapping
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	No
Sustainable Packaging	No
Height Useful	70 mm
Width Real	400 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Material	sealing gasket EPDMflat connector steel, spacer steel
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1912
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Mounting Diameter	0 mm
Product Or Component Type	coupling kit
Range	PanelSeT
Surface Finish	zinc coated
Height Nominal	70 mm
Width Nominal	400 mm
Accessory / Separate Part Category	coupling accessory
Customs Code	7326908688

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
