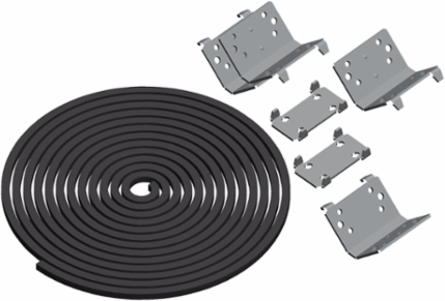

Schneider Electric NSYSFBK Coupling Kit, Spacial SF, Set of 4 Brackets, 2 Connectors, 365 mm Depth, IP55
- MPN: NSYSFBK
- PPN: SCH-NSYSFBK
CAD
$330.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This coupling kit from Schneider Electric is designed specifically for the Spacial SF series, providing a comprehensive solution for enhancing your IT enclosures and racks. It includes a set of four brackets and two connectors, ensuring a robust and secure assembly with a 365 mm depth. Offering an IP55 rating, this kit provides superior protection against dust and water, making it ideal for a variety of environments where reliable and efficient data and communication systems are essential. With this coupling kit, you can ensure your setup is both functional and well-protected, meeting the demands of modern automation and control systems.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.56 in
- Country of Origin
- Brazil, Costa Rica, Spain, France, United States
Width13.39 in
Depth365 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 2 flat connector4 bracket, fixing elements, sealing gasket
- Mounting Location
- side coupling of 2 enclosures, depthwise coupling of 2 enclosures
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4 kg CO2 eq., 3.911810413
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 7 kg CO2 eq., 7.230277126
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Mounting Diameter
- 0 mm
- Product Or Component Type
- coupling kit
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Pop Directive
- No POPs
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 65 mm
- Width Nominal
- 340 mm
- Accessory / Separate Part Category
- coupling accessory
- Package Weight(Lbs)
- 1.664 kg
- Take-back
- No
- Customs Code
- 7326908688
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialsealing gasket EPDMbracket steel, flat connector steel
Carbon Footprint Of The Distribution Phase [A4]0.320317147, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.368965365, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-02
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Fixing Modeby screws M6 self tapping
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityYes
Surface Finishzinc coated
Total Lifecycle Carbon Footprint12 kg CO2 eq.
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Recyclability Potential In %98
Height Useful65 mm
Width Real340 mm
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- No
- Environmental Disclosure
- ENVPEP1109023EN
- Ip Degree Of Protection
- IP55
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint11.83137005
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- coupling kit
ETIM
- ETIM 8
- EC002622
ETIM 9EC002622
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
