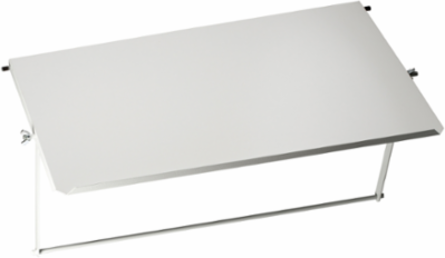

Schneider Electric NSYSDT5 Folding Support Tray 500 mm Wide, 30 kg Load Capacity, Adjustable Height
- MPN: NSYSDT5
- PPN: SCH-NSYSDT5
CAD
$254.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Folding support tray for Spacial enclosures. Enclosure dimensions is W is500 mm. 30 kg/m² max load. Mounting on door reinforcement frame/door cross rails for 1000 mm wide enclosures. Compatible is Spacial SF, SM, SFX, SMX, S3D, CRN. Adjustable in height, steps of 25 mm. Steel body, epoxy-polyester powder finish. Operating Angle is 45°, 60°, 75°, 90°.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, United States
- Depth
- 350 mm
Height1.97 in
Physical Attributes
- Color
- Gray RAL 7035)
Complementary Attributes
- Maximum Load
- 30 kg/m²
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 x tray
- Mounting Location
- on door reinforcement frame, on door cross rails for 1000 mm wide enclosures
- Carbon Footprint Of The Distribution Phase A4
- 0.288747428, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.33260099, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1912
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Adjustment
- adjustable in height, steps of 25 mm
- Energy Efficiency Optimized
- False
- Material
- steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Surface Finish
- epoxy-polyester powder
- Thickness
- 1.5 mm
- Silicone Free
- No
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Recyclability Potential, In %
- 98
- Height Useful
- 50 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- W: 500 mm, - W: 500 mm, - W: 500 mm, - W: 500 mm
Operating Angle45 °, 60 °, 75 °, 90 °
Carbon Footprint Of The End Of Life Phase C1 To C44 kg CO2 eq., 3.526271406
Carbon Footprint Of The Manufacturing Phase A1 To A37 kg CO2 eq., 6.517677698
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Fixing Modeby fixing element
Mounting Supportcross rails
Product Or Component Typefolding support tray
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Height Nominal50 mm
Width Nominalnominal: 325 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- No
- Environmental Disclosure
- ENVPEP1109023EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint10.66529752
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- folding support tray
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
