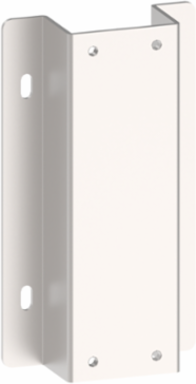

Schneider Electric LA9GRFB1 Retrofit Base for TeSys G 115-225 Contactor, -25 C to 60 C, 0.53 kg
- MPN: LA9GRFB1
- PPN: SCH-LA9GRFB1
CAD
$175.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
These accessories are retrofit bases for TeSys Giga 115-225 contactor. Designed to integrate TeSys Giga 115-225 contactors into existing installation with TeSys F contactors. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.
Features
- The Schneider Electric LA9GRFB1 retrofit base plate is engineered specifically to seamlessly integrate next-generation TeSys Giga contactors (models LC1G115 through LC1G225 and LC1G205 through LC1G245) directly into your legacy infrastructure. This precise mechanical matching eliminates the need to drill new mounting holes or completely swap out costly backplates, allowing you to upgrade older TeSys F frames to advanced motor control technology with zero chassis modification.
- This drop-in adapter plate pre-aligns to the original mounting footprint of legacy components, drastically shortening assembly and replacement timelines. By removing the layout and metalworking bottlenecks common in control panel retrofits, industrial maintenance teams can execute swift, predictable cutovers that dramatically minimize factory floor downtime.
- Measuring a highly compact 7.32 inches (186 mm) in height, 1.65 inches (42 mm) in width, and 1.6 inches (41 mm) in depth, this low-profile mounting plate adds negligible bulk to the internal stack-up. The slim, space-optimized architecture guarantees a clean fit inside high-density motor control centers (MCCs) where side-by-side clearance is heavily restricted.
- Built to demanding industrial-grade standards, the mounting plate operates reliably across a wide temperature spectrum from -13 F to 140 F (-25 C to 60 C) and carries an IEC 60947-1 Pollution Degree 3 rating. This robust design prevents thermal deformation and resists ambient industrial contaminants, ensuring uncompromised mechanical stability in heavy-duty manufacturing environments.
- As an official Green Premium compliant product, this halogen-free base plate adheres strictly to global environmental regulations including EU RoHS declarations. This transparent compliance profile helps your facility meet green building and corporate sustainability mandates without compromising on structural strength or electrical safetydeclarations. This transparent compliance profile helps your facility meet green building and corporate sustainability mandates without compromising on structural strength or electrical safety.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United Kingdom
Depth41 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2105013
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2121
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- LA9G
- Product Or Component Type
- plate
- Range
- TeSys
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 186 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 683.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-07-09
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Applicationretrofit installation
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
Range Of ProductTeSys G
Sustainable PackagingYes
Pep CodeENVPEP2105013EN
Width Nominal106 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Product Compatibility
- LC1G205...245, LC1G115...225LC1G205...245
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2105013EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2105013EN
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Operating Altitude9842.52 ft (3000 m) without derating, 5000 m with derating factor
Take BackNo
Recycled Metal Content At Cr Level0 %
Circularity ProfileENVEOLI2105013
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- plate
Range Of ProductTeSys G
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
