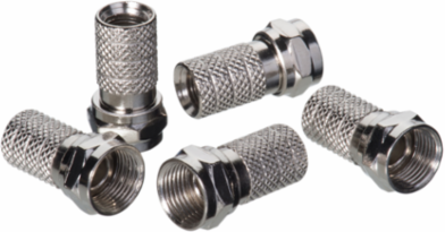

Ideal Industries 85-039 RG-6 F Twist-on Connector 50 Pack, 7/16 Inch Nut Diameter, 75Ω Coaxial
Ideal Industries 85-039 RG-6 F Twist-on Connector 50 Pack, 7/16 Inch Nut Diameter, 75Ω Coaxial
- MPN: 85-039
- PPN: IDL-85-039
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$84.03/ EA
Features
- Accepts RG-6 coax cables
- Designed for use in indoor video applications
- Reusable, can be removed and reused
- Industry standard 1/4” x 1/4” cable preparation
- Designed for 75Ω coaxial cables
- 7/16” nut diameter with 3/8-32 thread
- 1) Prepare RG-6 coax with a 1/4” x 1/4” strip, and fold back the braiding.
- 2) Twist the connector on to the cable clockwise until the white dielectric becomes flush with the bottom of the nut.
- 3) Attach connector to device.
Specifications
Specifications
- Connector Model
- 6FTW
- Dielectric diameter range
- .175” - .183”
- Recommended cable prep/stripping tools
- 45-605 PrepPRO™
Center conductor rangeAll
Outer jacket diameter range.254” - .278”
Recommended crimp toolsNone required
