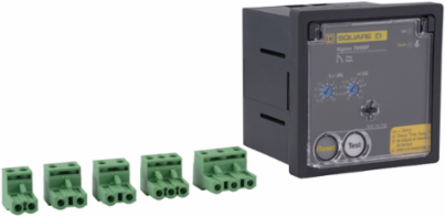

Schneider Electric 56492TD Ground Fault Relay Time Delay Switch UL Panel Mount Mercury Free
- MPN: 56492TD
- PPN: SCH-56492TD
CAD
$2351.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for reliability and safety, this ground fault relay time delay switch from Schneider Electric is a vital component for your power distribution needs. With its UL certification and compatibility with the MasterPact NW range, this panel-mounted device ensures robust protection against ground faults while adhering to stringent environmental standards. Notably, it is mercury-free, reflecting a commitment to safer, eco-friendly practices, although it does carry a warning regarding exposure to lead and lead compounds. Engineered for durability and efficiency, this time delay switch is an essential addition for any industrial or commercial electrical system, providing peace of mind and enhanced operational safety.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Important Information Attributes
- Persona Type Ids
- LC, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.03143779518914882, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.05244381884677071, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 46 kg CO2 eq., 46.31700000000001
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - Protection relay
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2310023EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1902
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Circuit Breaker Type
- NW
- Mounting Location
- panel
- Product Or Component Type
- time delay switch
- Returnability
- No
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2310023EN
- Pep Verification Date
- 2023-12-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Certificate Agency
- UL
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 240.404 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6 kg CO2 eq., 0.5867570085226158
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.014500246460156
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionPPIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductMasterPact NW
Software Versionv5.9.4
Total Lifecycle Carbon Footprint49 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 10 years people and premises at risk of fire or explosion with assigned voltage 220-240V by detecting and measuring the earth leakage current sensitivity is selectable with 9 thresholds from 30 mA to 30 A.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %27
Accessory / Separate Part Categoryinterlocking accessory
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2310023EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- MasterPact NW Masterpact
- Pep Code
- ENVPEP2310023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint49.0021388690187
Environmental DisclosureENVPEP2310023EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-12-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- time delay switch
Range Of ProductMasterPact NW
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
