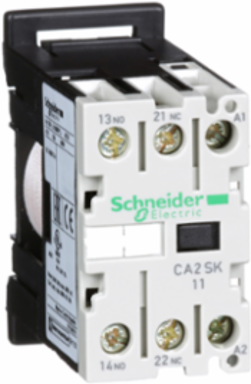

Schneider Electric CA2SK11G7 TeSys SK Control Relay, 2P (1NO+1NC), 27mm Width, 120V AC Coil
- MPN: CA2SK11G7
- PPN: SCH-CA2SK11G7
CAD
$103.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys SK industrial control relays are very compact relays that mount of DIN rail. The coil has an operating voltage of 120 VAC 50/60 Hz. Relay has 1 NO and 1 NC contacts. TeSys SK industrial control relays have a 10 ampere resitive ratinga and a NEMA A600 rating. Relays have screw clamp terminals. TeSys SK industrial control relays are UL Listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, United States
Depth55.5 mm
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.85...1.1 Uc (at <50 °C)
- Maximum Operating Rate
- 1200 cyc/h
Control Circuit TypeAC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gL conforming to VDE 0660, 10 A gL conforming to IEC 60947
- Operating Time
- 6...8 ms coil de-energisation and NO opening, 7...14 ms coil energisation and NO closing, 8...10 ms coil de-energisation and NC closing, 8...16 ms coil energisation and NC opening
- Certificate Agency
- CB Scheme, cULus, EAC, CE, UKCA
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947, 690 V VDE 0110 group C, 690 V BS 5424, 690 V UL 508, 690 V CSA C22.2 No 14
- Carbon Footprint Of The Distribution Phase [A4]
- 0.24970850511095088, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.01716642270927978, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 57 kg CO2 eq., 56.65241524409139
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1503003
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- CA2SK
- Device Short Name
- CA2SK
- Inrush Power In Va
- 16-16 VA (at 20 °C)
- Pole Contact Composition
- 1 NO + 1 NC
- Product Name
- TeSys CASK
- Protective Treatment
- TC IEC 60068
- Range Of Product
- TeSys SK control relay
- Software Version
- v6.2.4
- Tightening Torque
- 0.8 N.m screw clamp terminals pozidriv No 1
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Circuit Voltage 21
- 120 V
- Pep Code
- ENVPEP1503003EN
- Pep Verification Date
- 2026-03-23
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential, In %
- 63
- Width Nominal
- 27 mm
- [Uc] Control Circuit Voltage
- 120 V AC 50/60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportplate, rail
Utilisation CategoryDC-13, AC-15
[Ue] Rated Operational Voltage<= 690 V <= 400 Hz, <= 690 V <= 400 Hz<= 690 V <= 400 Hz, <= 690 V <= 400 Hz
Connections - Terminalsscrew clamp terminals 2 0.35-1.5 mm²flexible with cable end, screw clamp terminals 2 0.35-2.5 mm²flexible without cable endscrew clamp terminals 1 1.5-6 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.5-6 mm²flexible without cable end, screw clamp terminals 1 0.35-6 mm²flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.18133574745396633
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.6 kg CO2 eq., 0.6469994680182294
Local Data StatusPublishable
Return IndicatorY
Device TypeLV equipment - LV contactor
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label3
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contactor Applicationcontrol circuit
Heat Dissipation1.4-1.4 W
Mechanical Durability10 Mcycles
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typecontrol relay
RangeTeSys
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint58 kg CO2 eq.
Pole Contact Comp1 NO + 1 NC
Control Circuit Voltage 21 Control Circuit Voltage120 V
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh140.16
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal56 mm
[Ith] Conventional Free Air Thermal Current10 A (at 55 °C)
Hold-in Power Consumption In Va4.2-4.2 VA (at 20 °C)
Package Weight(Lbs)126.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-70 °C, -50-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 57.74762538738381
- Environmental Disclosure
- ENVPEP1503003EN
- Ip Degree Of Protection
- IP2X
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-23
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI1503003
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m) without derating
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1503003EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- control relay
Range Of ProductTeSys SK control relay
ETIM
- ETIM 8
- EC000196
ETIM 9EC000196
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
