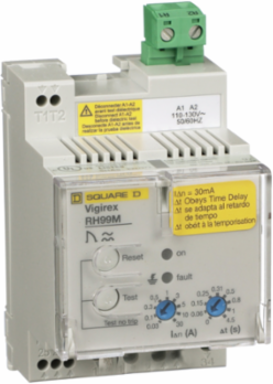

Schneider Electric 56372TD Vigirex Ground-Fault Relay with Time Delay, 110-130 VAC, Rail Mounted
Schneider Electric 56372TD Vigirex Ground-Fault Relay with Time Delay, 110-130 VAC, Rail Mounted
- MPN: 56372TD
- UPC: 785901597094
- PPN: SCH-56372TD
- UNSPSC: 39121613
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2109.23/ EA
Description
Vigirex Ground-Fault Relay with Time Delay, 110-130 VAC, Rail Mounted
Features
- VigiPacT relays ensure coordination with ComPacT circuit breakers (switch off within 40ms)
- Continuous monitoring of the power supply, the relay/toroid link and internal electronics
- Reinforced insulation of VigiPacT relays (overvoltage category IV)
- Access to settings protected by a lead-sealable cover or password
- Green Premium labelled products, RoHS and REACH compliant
Specifications
Conformance Attributes
- Product Certifications
- UL
Important Information Attributes
- Persona Type Ids
- LC, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase A4
- 0.03143662683579199, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.058829767348747154, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 43 kg CO2 eq., 42.72599999999999
- Local Publishable Date
- 2025-08-19
- Serviceability
- Yes
- Field Service Division
- PPIBS
- WEEE Applicability
- Finished product
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Halogen Free Status
- Product contains halogen above thresholds
- Mounting Mode
- rail
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- time delay switch
- Returnability
- Yes
- Total Lifecycle Carbon Footprint
- 63 kg CO2 eq.
- Uc Control Circuit Voltage2
- 110...130 V AC
- Stocking Flag
- Y
- Pep Code
- ENVPEP2310022EN
- Pep Verification Date
- 2023-12-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Uc Control Circuit Voltage5
- 110...130 V AC
Persona Type NamesContractor, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End Of Life Phase C1 To C40.4 kg CO2 eq., 0.4211537559278647
Carbon Footprint Of The Manufacturing Phase A1 To A320 kg CO2 eq., 20.04385756715512
Local Data StatusPublishable
Device TypeRelay, Control & Measurement - Protection relay
TraceabilityYes
Average Life Duration15 year(s)
WEEE ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2310022EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Mounting Locationrail
Package Weight Lbs240.404 g
Product DestinationDIN rail
Range Of ProductVigirex
Sustainable PackagingNo
Type Of Measurementcurrent
Medium DescGFR RH99M MANUAL TIME DELAY UL 120VAC
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect during 10 years people and premises at risk of fire or explosion with assigned voltage 220-240V by detecting and measuring the earth leakage current with sensitivity 0.3-30A.
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; UE-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2310022EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-05
- Psr Version
- PSR-0005-ed2-2016 03 29
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Carbon Footprint63.28127771726752
Environmental DisclosureENVPEP2310022EN
Packaging Made With Recycled CardboardYes
Product CompatibilityVigirex Vigi
Pep CodeENVPEP2310022EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- time delay switch
Range Of ProductVigirex
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
