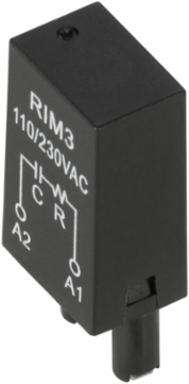

Weidmuller 7760056014 RIM 3 110/230VAC
- MPN: 7760056014
- PPN: WDM-7760056014
CAD
$11.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
D-SERIES, RC filter, Rated control voltage: 110…230 V AC, Plug-in connection
Documentation & Downloads
Specifications
General Data
| Colour | black |
|---|
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|

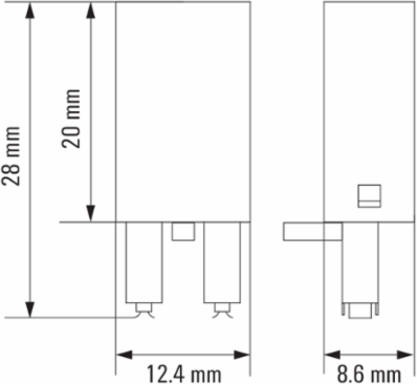

Dimensions And Weights
| Width | 12.4 mm |
|---|---|
| Height | 8.6 mm |
| Depth | 28 mm |
| Net weight | 1.9 g |
| Width (inches) | 0.488 inch |
|---|---|
| Height (inches) | 0.339 inch |
| Depth (inches) | 1.102 inch |
Connection Data
| Wire connection method | Plug-in connection |
|---|
Input
| Rated control voltage | 110...230 V AC |
|---|---|
| Protective circuit | RC element |
| Status indicator | No |
|---|---|
| RC filter | 4.7 kΩ / 10 nF |
Classifications
| ETIM 6.0 | EC002586 |
|---|---|
| eClass 9.1 | 27-37-10-10 |
| ETIM 7.0 | EC002586 |
|---|---|
| eClass 10.0 | 27-37-10-10 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
