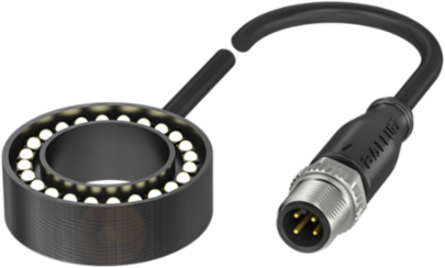

Balluff BAE LX-VS-RI040 Ring lights - BAE011P
Balluff BAE LX-VS-RI040 Ring lights - BAE011P
- MPN: BAE LX-VS-RI040
- PPN: BAL-BAE011P
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1190.93/ EA
Description
Ring lights - BAE011P
Specifications
Specifications
- Country of Origin
- Germany
- Version
- Ring light
- Rated operating voltage Ue DC
- 24 V
- Operating mode
- Normal; Boost
- Material
- Aluminum anodized, black
- Light type
- LED Infrared
- Illuminence (0.1 m)
- 5800 Lux; 9500 Lux (Boost mode)
- Ambient temperature
- -10...50 °C
- IP rating per IEC 60529
- IP20
ConnectionCable with connector, M12x1-Male, 4-pin, 0.3 m
DimensionØ 40.5 x 13 mm
Current draw max.146 mA, 229 mA (Boost mode)
Digital inputsTrigger
Illumination areaØ 38 mm/Ø 26 mm
Wave length875 nm
Beam angle40 °
Approval/ConformityCE; UKCA; WEEE
