LED Ring Light Ø 116 mm, 8500 Lux, IP54, 24 V
Balluff

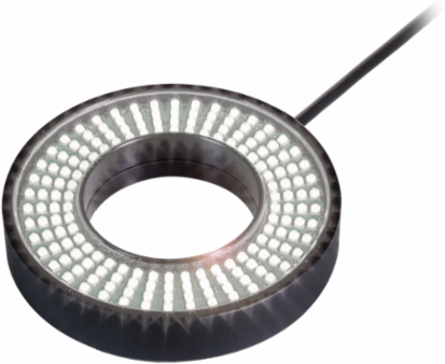

Balluff BAE LX-VS-RW100 LED Ring Light Ø 116 mm, 8500 Lux, IP54, 24 V

  • MPN: BAE LX-VS-RW100
  • PPN: BAL-BAE00AN

CAD

$1592.41

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Experience exceptional illumination with the Balluff LED Ring Light, designed for precision and reliability in various industrial applications. With an impressive brightness of 8500 Lux at 0.1 meters and a boost mode that elevates it to 16100 Lux, this ring light ensures optimal visibility in your workspace. Engineered with a robust aluminum anodized body and a glass lens, it boasts an IP54 rating for protection against dust and water, making it suitable for demanding environments. Its compact dimensions of Ø 116 x 20.5 mm and a beam angle of 30° allow for targeted lighting, while the 24 V operation ensures compatibility with a wide range of systems. Ideal for continuous operation or enhanced performance with cooling in boost mode, this lighting solution is a vital addition to any setup requiring precise and reliable illumination.

Documentation & Downloads

Specifications

Additional

Illuminance (0.1 m)
8500 Lux; 16100 Lux (Boost mode)
Current Draw Max.
410 mA; 830 mA (Boost mode)
Diameter
116 mm
Illumination Area
Ø 100 mm/Ø 60 mm
Material
Aluminum anodized black; Glass
Operating Mode
Normal (continuous); Boost (continuous with cooling)
Approval/Conformity
CE; UKCA; WEEE
Rated Operating Voltage24 V DC
Beam Angle30°
DimensionsØ 116 x 20.5 mm
ConnectionCable with connector, M12x1 Male, 4-pin, 0.3 m
IP RatingIP54
Ambient Temperature-10 to 55 °C
Country of OriginGermany
