LED Ring Light Ø 40.5 x 13 mm, 1070 Lux, IP20, 24 V
Balluff

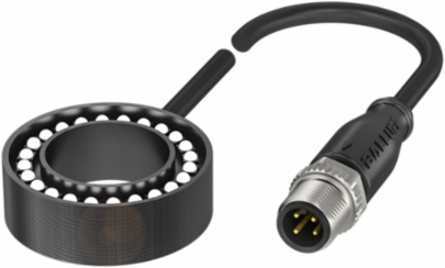

Balluff BAE LX-VS-RW040 LED Ring Light Ø 40.5 x 13 mm, 1070 Lux, IP20, 24 V

  • MPN: BAE LX-VS-RW040
  • PPN: BAL-BAE011T

CAD

$1190.93

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Experience exceptional illumination with the Balluff LED Ring Light, designed for precision and reliability in various applications. With a compact diameter of 40.5mm and a powerful output of 1070 Lux, this ring light ensures optimal visibility in environments where detail is paramount. Built to withstand ambient temperatures ranging from -10 to 50 °C, it features an IP20 rating for protection against solid objects, making it suitable for a range of industrial settings. The robust aluminum anodized construction not only enhances durability but also adds a sleek aesthetic, while the versatile connection options allow for easy integration into existing systems. Whether in normal or boost mode, this lighting solution guarantees consistent performance to meet your operational needs.

Documentation & Downloads

Specifications

Additional

Voltage
24 V
Current Draw Max
104 mA, 170 mA (Boost mode)
Illuminance at 0.1 m
1070 Lux, 3050 Lux (Boost mode)
Diameter
40.5 mm
Illumination Area
8 mm, 6 mm
Material
Aluminum anodized, black
Operating Mode
Normal, Boost
Approval/Conformity
CE, UKCA, WEEE
Version
Ring light
Operating Temperature Range-10 to 50 6C
Light TypeLED White Light
Beam Angle40 6
Height13 mm
IP RatingIP20
ConnectionCable with connector, M12x1-Male, 4-pin, 0.3 m
Digital InputsTrigger
Country of OriginGermany
