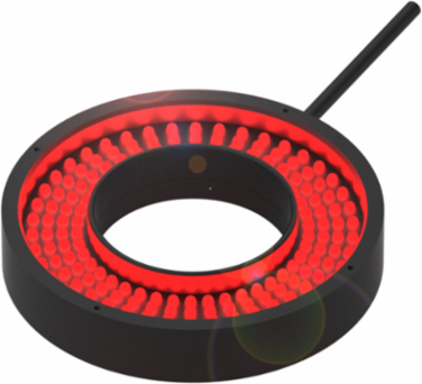

Balluff BAE LX-VS-RR100 Ring lights - BAE000J
Balluff BAE LX-VS-RR100 Ring lights - BAE000J
- MPN: BAE LX-VS-RR100
- PPN: BAL-BAE000J
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1554.05/ EA
Description
Ring lights - BAE000J
Specifications
Specifications
- Country of Origin
- Germany
- Version
- Ring light
- Rated operating voltage Ue DC
- 24 V
- Operating mode
- Normal (continuous operation); Boost (continuous operation with cooling)
- Material
- Aluminum anodized, black; Glass
- Light type
- LED Red light
- Illuminence (0.1 m)
- 19000 Lux; 32500 Lux (Boost mode)
- Ambient temperature
- -10...55 °C
- IP rating per IEC 60529
- IP54
ConnectionCable with connector, M12x1-Male, 4-pin, 0.3 m
DimensionØ 116 x 20.5 mm
Current draw max.830 mA, 1370 mA (Boost mode)
Digital inputsTrigger
Illumination areaØ 100 mm/Ø 60 mm
Wave length617 nm
Beam angle30 °
Approval/ConformityCE; UKCA; WEEE
