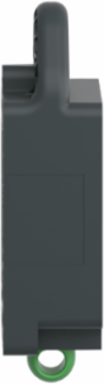

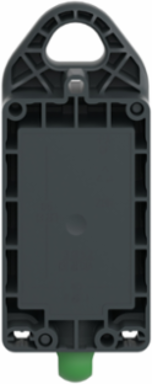

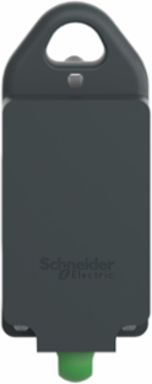

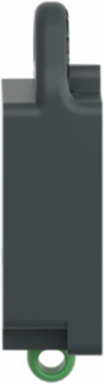

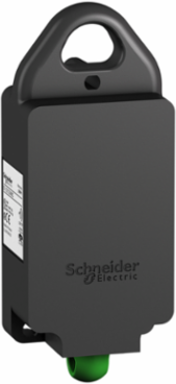

Schneider Electric ZBRP1 Harmony XB5R Wireless Rope Pull Switch, IP66, 1000N Pulling Force

MPN: ZBRP1
PPN: SCH-ZBRP1
UNSPSC: 39122216

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$186.22

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This rope pull switch is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a rope pull switch with wireless and batteryless transmitter. Its pulling force is from 45N to 1000N. The rope pull switch is adapted for automatic doors. It sends a radio message to the receiver in the control panel to open and close the door. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It weighs 150g.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Excellent mechanical connection with operator head
A large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	180 g

Communications & Management Attributes

Communication Port Protocol	Zigbee green power 2.4 GHz IEEE 802.15.4

Physical Attributes

Cad Overall Depth	38 mm
Cad Overall Width	56 mm

Cad Overall Height	144 mm

Complementary Attributes

Maximum Sensing Distance	100 m in free field

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)), susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz)susceptibility to electromagnetic fields - test level: 6 V/m (2000...6000 MHz)
Radio Agreement	ICASA, GITEKI
Carbon Footprint Of The Distribution Phase A4	0.02839968, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.004802688, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2506037EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Antenna Gain	0 dBi
Bezel Material	plastic
Emission Power	3 mW
Level Or Class	5M00G7W
Mechanical Robustness	free fall resistance 1 m EN/IEC 60068-2-31
Operating Position	any position
Product Or Component Type	wireless and batteryless transmitter
Returnability	Yes
Sustainable Packaging	No
Transmission Frequency	2405 MHz
Database Version	2016-11
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Mounting Mode	between 2 ropes, panel mount with universal support
Certificate Agency	UL, GOST, CE, RCM, ANATEL, FCC, UKCA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.08989536
Carbon Footprint Of The Manufacturing Phase A1 To A3	2 kg CO2 eq., 1.644672
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Antenna Type	omnidirectional
Device Short Name	ZBRP1
Fixing Mode	by screw 1.8-2.2 N.m
Mechanical Durability	1000000 cycles
Number Of Channels	1
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony XB5R
Software Version	EIME v5.8.1
Total Lifecycle Carbon Footprint	2 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Customs Code	8536509065
Functional Unit Description	The ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years.

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	1.767769728
Environmental Disclosure	ENVPEP2506037EN
Ip Degree Of Protection	IP65 IEC 62262
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2506037EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2506037EN
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	NEMA 4
Packaging Without Single Use Plastic	No
Relative Humidity	95-95 % without condensation
Pep Verification Date	2020-11-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
