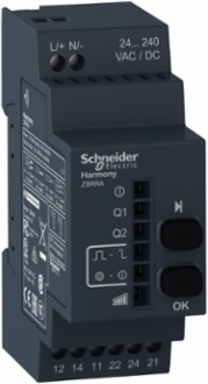

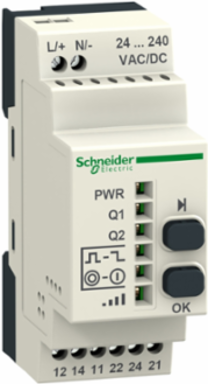

Schneider Electric ZBRRA Programmable Receiver with 2 Relays, 24-240V AC/DC, IP20, 130g

  • MPN: ZBRRA
  • PPN: SCH-ZBRRA
  • UNSPSC: 39122216
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $269.72

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

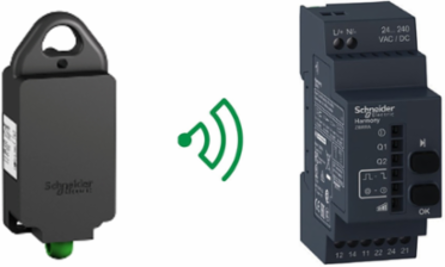

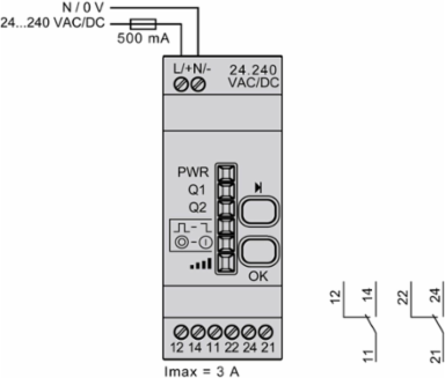

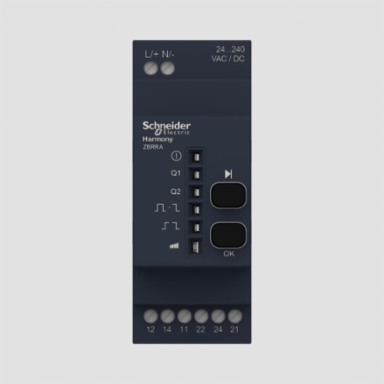

    This programmable receiver is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a configurable receiver equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It is supplied set to monostable output function and can be configured to bistable and stop/start functions. It features 2 relay outputs type RT 3A. Its supply voltage is 24V to 240V AC/DC. It weighs 130g.

    Features

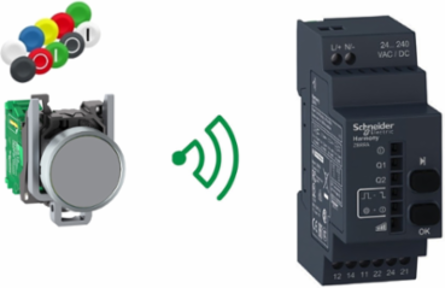

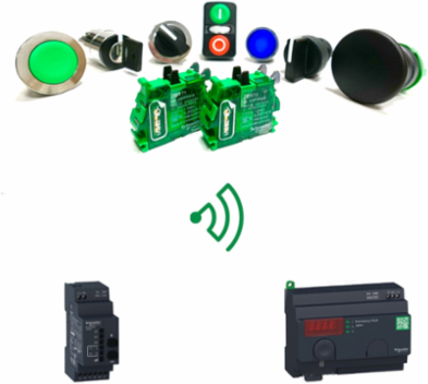

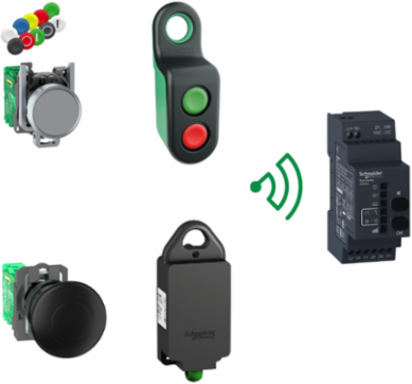

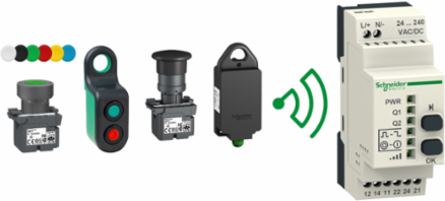

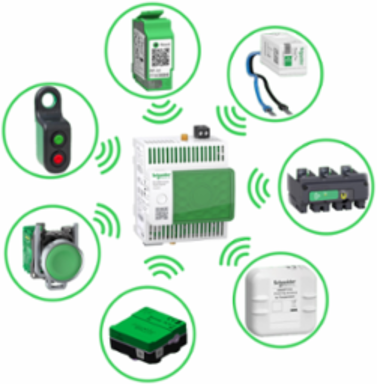

    • Part of the Harmony XB4R (metal) and XB5R (plastic) ecosystem, this programmable receiver pairs with innovative batteryless wireless push buttons. The transmitters utilize an internal "dynamo" generator that converts the mechanical energy of a finger press into electrical energy. It instantly broadcasts a unique 2.4 GHz Zigbee Green Power signal (conforming to IEEE 802.15.4) back to this receiver, completely removing the labor costs of routing control wires or maintaining battery replacement schedules.
    • Engineered for high installation flexibility, this device features a true wide-range universal power supply that safely accepts anywhere from 24V to 240V AC/DC at 50/60 Hz. This broad electrical rating allows panel builders to deploy the exact same receiver module across diverse power standards, saving engineering time and reducing inventory complexity for mixed-voltage commercial and industrial facilities.
    • This receiver features two independent changeover (2 C/O, SPDT) relay outputs that provide complete galvanic input-output isolation. The high-durability silver-alloy contacts support up to 3A at 120V/240V AC or 24V DC conforming to strict CSA C22.2 No 14 and UL 508 standards, ensuring reliable physical switching for inductive pilot coils, interlocking circuits, or direct PLC inputs with a fast 30 ms maximum response time.

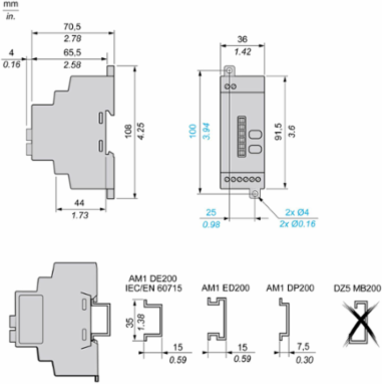

    • Housed in a compact, 36 mm wide polycarbonate enclosure, this module snaps directly onto standard 35 mm symmetrical DIN rails conforming to IEC 60715 benchmarks. Featuring heavy-duty screw clamp terminals that handle solid or stranded control wiring down to 14 AWG, it is built to endure 1,000,000 mechanical operating cycles while maintaining continuous, spark-free contact connectivity next to high-vibration machinery.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginIndonesia, Singapore, United States
    Depth75 mm
    Weight138 g

    Complementary Attributes

    Control Circuit Frequency50...60 Hz +/- 10 %
    Maximum Switching Current5 mA AC/DC
    Ui Rated Insulation Voltage250 V IEC 60664-1
    Maximum Sensing Distance100 m in free field25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure
    Maximum Switching Voltage250 V AC/DC
    Us Rated Supply Voltage24...240 V24...240 V AC/DC 50/60 Hz - 10...10 %

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Electrical Connection2 conductors cable 0.14-1.5 mm² - 26 AWG...16 AWG - flexible - with cable end IEC 60947-1, 1 conductor cable 0.14-2.5 mm² - 26 AWG...14 AWG - solid - without cable end IEC 60947-12 conductors cable 0.14-1.5 mm² - 26 AWG...16 AWG - solid - without cable end IEC 60947-1, 1 conductor cable 0.14-4 mm² - 26 AWG...12 AWG - flexible - with cable end IEC 60947-1
    Insulation Resistance> 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030> 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030
    Status Led1 LED Green power ON2 LEDs Green relay ON, 2 LEDs Green function mode1 LED green and yellow reception signal
    Certificate AgencyC-tick, CCC, CSA, UL, GOST
    Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.068919776
    Carbon Footprint Of The Manufacturing Phase A1 To A31 kg CO2 eq., 1.2609152
    Local Data StatusPublishable
    Return IndicatorY
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Antenna Typeomnidirectional
    Housing Materialpolycarbonate
    MarkingCE
    Modulation TechniqueO-QPSK
    Number Of Channels1
    Overvoltage CategoryII conforming to IEC 60664-1
    Product Or Component Typeprogrammable receiver
    Range Of ProductHarmony
    ReturnabilityYes
    Software VersionEIME v5.8.1
    Switching Capacity In Va1250 VA
    Time Delay Range0.5 s - 15...15 %)
    Transmission Frequency2405 MHz
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Data Sourceextrapolated product
    Width Nominal36 mm
    Customs Code8538908180
    Warranty In Months18
    Reference Lifetime In Y10
    Recyclability Potential In %2
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Function Of Modulebi-stable, monostable, stop/start
    Response Time< 30 ms after transmitter clicks, < 30 ms after transmitter clicks< 30 ms after transmitter clicks, < 30 ms after transmitter clicks
    Vibration Resistance+/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-62 gn (f= 8-150 Hz) conforming to IEC 60068-2-6
    Carbon Footprint Of The Distribution Phase A40.021773088, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.0036820608, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B631 kg CO2 eq., 31.0418797733
    Local Publishable Date2026-08-06
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2303007EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Antenna Gain0 dBi
    Device Short NameZBRRA
    Level Or Class5M00G7W
    Mechanical Durability1000000 cycles
    Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
    Operating Positionany position without derating
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Specific Applicationinterface to actuators
    Reset Time2 ms time delay
    Shock Resistance10 gn 16 ms) 6000 shocks IEC 60068-2-27
    Sustainable PackagingNo
    Tightening Torque0.6 N.m
    Total Lifecycle Carbon Footprint32 kg CO2 eq.
    Utilisation CategoryAC-15 : B300 IEC 60947-5-1
    Database Version2016-11
    Height Nominal108 mm
    Nbr. Of Units In Pkg.1
    Short Circuit Protection0.4 A fuse fast blow
    Functional Unit DescriptionThe ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years.
    Energy Consumption On Product Lifetime In Kwh52.5746

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2303007EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2020-11-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint32.3971698981
    Environmental DisclosureENVPEP2303007EN
    Ip Degree Of ProtectionIP20 IEC 60529 casing)
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2303007EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typeprogrammable receiver
    Range Of ProductHarmony

    ETIM

    ETIM 8EC002024
    ETIM 10EC002024
    ETIM 9EC002024

    Output Attributes

    Nominal Output Current3 A 24 V DC UL 508
    Output Type2 relays
    Output Contacts2 C/O

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Input Output Isolationgalvanic isolation
