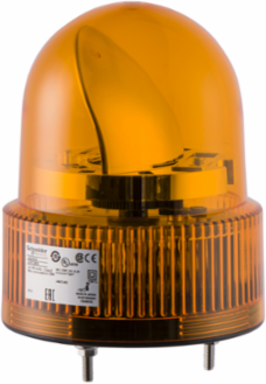

Harmony XVR 120mm Orange Rotating Beacon with Buzzer 24V AC/DC
Harmony XVR 120mm Orange Rotating Beacon with Buzzer 24V AC/DC
Schneider Electric

Schneider Electric XVR12B05S Harmony XVR 120mm Orange Rotating Beacon with Buzzer 24V AC/DC

  • MPN: XVR12B05S
  • PPN: SCH-XVR12B05S

CAD

$334.14

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This orange beacon is part of the range of rotating beacons Harmony XVR diameter 120mm. It is supplied complete with a buzzer and pre-cabled. Supply voltage is 24V AC/DC and degree of protection is IP 23. It is designed for long distance signaling applications, thanks to the use of “super-bright” LED which provides good illuminating power, a long service life and reduced time for maintenance and also energy saving. It is used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, Indonesia, Japan

Physical Attributes

Cable Length
400 mm
Cad Overall Width
120 mm
Cad Overall Depth120 mm

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Material
ABS (acrylonitrile butadiene-styrene): body part, AS: globe
Certificate Agency
IEC 61000-6-4, IEC 61000-6-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.9 kg CO2 eq., 0.8534824593
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
4 kg CO2 eq., 3.8584271248
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Weee Scope
Out
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2308034EN
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
5
Without Single Use Plastic
No
Tier Id
1
Function Option Id
STANDARD
Product Kit Identifier
N
Compatibility Code
XVR
Device Short Name
XVR
Flashing Frequency
2.3 Hz
Marking
CE
Noise Level
50-90 dB continuous or intermittent tone)1 m
Product Mounting
by 3 M5 screws
Protective Treatment
TC
Returnability
Yes
Sound Signalling
buzzer
Total Lifecycle Carbon Footprint
82 kg CO2 eq.
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
This rotating mirror is part of the range of pre-wired rotating/flashing beacons Harmony XVR. It is supplied complete, pre-cabled with a buzzer integrated (adjustable sound level from 50dB to 90dB at 1 m). It provides good illuminating power and a long service life (reduced time for maintenance) thanks to its super-bright LED.It is designed for long distance signaling applications, used mainly in the iron and steel industry. It has power consumption of 4.704 W with use rate of 5% for a period of 10 years and product is adhering to standards EN 61000-6-2
Functional-unit Unit
Unit
Energy Model - Manufacturing [A1-a3]
Energy model used: Electricity Mix; Production mix; Low voltage; APAC
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
[Uimp] Rated Impulse Withstand Voltage
0.8 kV
Nbr. Of Units In Pkg.
1
Take-back
No
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
76.764
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
1423.38
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
36.1038
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
1423.38
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
207.996
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
207.996
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Supply Voltage Limits19-30 V DC, 21.6-26.4 V AC
Carbon Footprint Of The Distribution Phase [A4]0.1054161664, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.5312993852, 0.5 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]77 kg CO2 eq., 76.812
Local Publishable Date2026-01-12
Stocking FlagY
Use Carbon Footprint76.812
Weee Product Category5
Eoli Availability DisplayYes
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg GaugeAWG 18
Current Consumption196 mA
Electrical Shock Protection Classclass II IEC 61140
Light Sourcehigh luminosity LED, orange
Mounting Diameter120 mm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeprewired rotating mirror beacon
Range Of ProductHarmony XVR
Software Versionv5.9.4
Sustainable PackagingNo
Pep CodeENVPEP2308034EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
[Us] Rated Supply Voltage24 V AC/DC
Package Weight(Lbs)659.000 g
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]76.812
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]1150.02
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]12.1914
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1631.4
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1423.38

Environment Attributes Main

Ambient Air Temperature For Operation
-10-50 °C, -10-50 °C
Take Back
No
China Rohs Regulation
X
Carbon Footprint
82.1606251356
Environmental Disclosure
ENVPEP2308034EN
Ip Degree Of Protection
IP23 IEC 60529
Packaging Without Single Use Plastic
No
Pep Verification Date
2023-08-01
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-35-70 °C, -35-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308034EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Pep CodeENVPEP2308034EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
prewired rotating mirror beacon
Range Of ProductHarmony XVR

ETIM

ETIM 8
EC001341
ETIM 9EC001341

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
