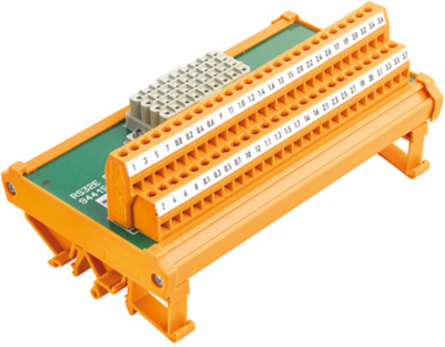

Weidmuller 9441510000 RS 32IO 1W R S
- MPN: 9441510000
- PPN: WDM-9441510000
CAD
$235.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Interface, RS, 1-wire, Screw connection
Documentation & Downloads
Specifications
General Data
- LED status display per channel
- No
- Type of test point
- No
- LED status of the supply voltage
- No
- Common pole polarity
- No
Disconnection per channelNo
Fuse per channelNo
Power supply fuseNo
Approvals
- Approvals
- CE, EAC
ROHSConform
Dimensions And Weights
- Length
- 148 mm
- Width
- 87 mm
- Height
- 72 mm
- Net weight
- 292 g
Length (inches)5.827 inch
Width (inches)3.425 inch
Height (inches)2.835 inch
Supply Connection
- Type of connection
- Screw connection
- Clamping range, max.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 1.5 mm²
Clamping range, min.0.13 mm²
Solid, min. H05(07) V-U0.5 mm²
Insulation Coordination (En50178)
- According to
- DIN EN 50178
- Surge voltage category
- II
- Pulse voltage test (1,2/50μs)
- 1.5 kV
Rated insulation voltage< 150 V AC
Pollution severity level2
Insulation test voltage1.1 kVAC
Ratings Data
- Operating voltage
- 150 V UC
- Total operating current
- 2 A
Max. current per channel1 A

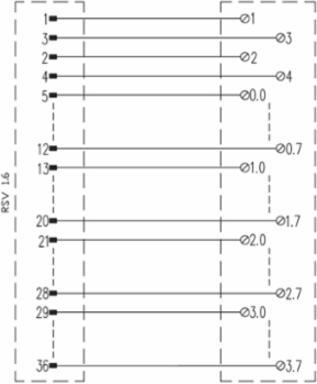

Connection Data
- Connection to PLC
- RSV 1.6 connector - 36 pole
- Number of poles (control side)
- 36-pole female
- Wiring system
- 1-wire
Connection on control sideConnector RSV 1.6
Connection (field side)LPK 2N 5.08mm
Connection Field
- Type of connection
- Screw connection
- Clamping range, max.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Min. wire cross-section, AWG
- AWG 26
- Tightening torque, min.
- 0.5 Nm
- Stripping length
- 6 mm
Clamping range, min.0.13 mm²
Solid, min. H05(07) V-U0.5 mm²
Flexible, min. H05(07) V-K0.5 mm²
Flexible with sleeve, max.2.5 mm²
Sleeve with plastic collar, max.2.5 mm²
Max. wire cross-section, AWGAWG 12
Tightening torque, max.0.6 Nm
Classifications
- ETIM 6.0
- EC002780
- eClass 9.0
- 27-14-11-52
- eClass 10.0
- 27-14-11-52
ETIM 7.0EC002780
eClass 9.127-24-22-16
UNSPSC30-21-18-01
Temperatures
- Operating temperature, max.
- 50 °C
- Storage temperature, max.
- 60 °C
- Operating temperature
- -25...50 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40...60 °C
