RSD 40 LP/LP
RSD 40 LP/LP
Weidmuller

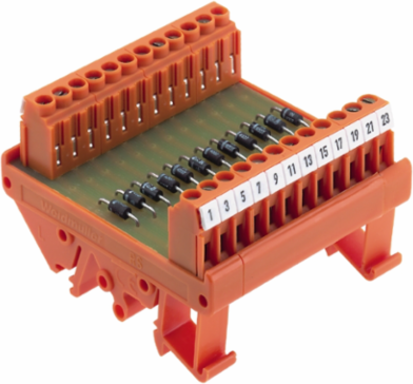

Weidmuller 8022921001 RSD 40 LP/LP

  • MPN: 8022921001
  • PPN: WDM-8022921001

CAD

$372.76

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

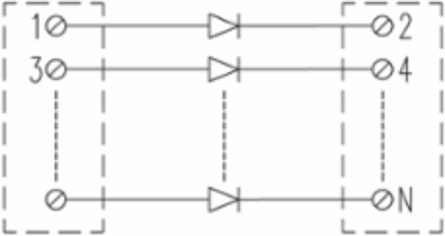

Interface, RSD, PLC digital I/O module, Screw connection

Documentation & Downloads

Specifications

Approvals

Approvals
CE
ROHSConform

Dimensions And Weights

Length
220 mm
Width
70 mm
Height
42 mm
Net weight
364 g
Length (inches)8.661 inch
Width (inches)2.756 inch
Height (inches)1.654 inch

Insulation Coordination (En50178)

Rated insulation voltage
230 V
Pollution severity level
2
Surge voltage categoryII
Pulse voltage test (1,2/50μs)2 kV

Connection Field

Type of connection
Screw connection
Clamping range, max.
6 mm²
Solid, max. H05(07) V-U
6 mm²
Flexible, max. H05(07) V-K
4 mm²
Flexible with sleeve, min.
0.5 mm²
Min. wire cross-section, AWG
AWG 26
Tightening torque, min.
0.5 Nm
Stripping length
6 mm
Clamping range, min.0.13 mm²
Solid, min. H05(07) V-U0.5 mm²
Flexible, min. H05(07) V-K0.5 mm²
Flexible with sleeve, max.2.5 mm²
Sleeve with plastic collar, max.2.5 mm²
Max. wire cross-section, AWGAWG 12
Tightening torque, max.0.6 Nm

Classifications

ETIM 6.0
EC002780
eClass 9.0
27-14-11-52
eClass 10.0
27-14-11-52
ETIM 7.0EC002780
eClass 9.127-14-11-52
UNSPSC30-21-18-01

Temperatures

Operating temperature, max.
55 °C
Storage temperature, max.
60 °C
Operating temperature
0...55 °C
Operating temperature, min.0 °C
Storage temperature, min.-40 °C
Storage temperature-40...60 °C

Rating Data

Rated voltage (text)
230 V
Max. recurring peak voltage
1,000 V
Rated current per connection1 A
