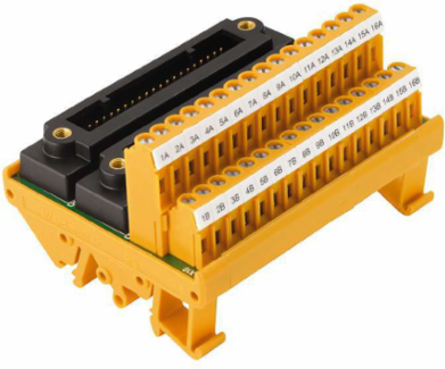

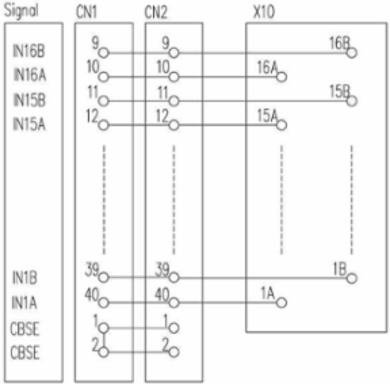

Weidmuller 1371550000 TBY-C3-16AI-2KS-Z
- MPN: 1371550000
- PPN: WDM-1371550000
CAD
$187.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Interface, RS, 2 x KS (40P), LM2NZF 5.08mm
Documentation & Downloads
Specifications
General Data
- LED status display per channel
- No
- Type of test point
- No
- Fuse per channel
- No
- Power supply fuse
- No
Disconnection per channelNo
SwitchNo
LED status of the supply voltageNo
Approvals
- Approvals
- CE, EAC
Dimensions And Weights
- Length
- 90 mm
- Width
- 70 mm
- Height
- 52 mm
- Net weight
- 153.84 g
Length (inches)3.543 inch
Width (inches)2.756 inch
Height (inches)2.047 inch
Supply Connection
- Type of connection
- Tension-clamp connection
- Clamping range, max.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 2.5 mm²
- Flexible, max. H05(07) V-K
- 1.5 mm²
- Flexible with sleeve, min.
- 0.25 mm²
- Wire cross-section, min. AWG
- AWG 14
- Stripping length
- 7.5 mm
Clamping range, min.0.13 mm²
Solid, min. H05(07) V-U0.2 mm²
Flexible, min. H05(07) V-K0.2 mm²
Flexible with sleeve, max.1.5 mm²
Ferrule with plastic collar, max.1.5 mm²
Wire cross-section, max. AWGAWG 24
Insulation Coordination (En50178)
- Rated insulation voltage
- < 50 V AC
- Pollution severity level
- 2
- Insulation test voltage
- 0.35 kVAC
Surge voltage categoryIII
Pulse voltage test (1,2/50μs)0.8 kV
Ratings Data
- Operating voltage
- 50 V AC / 70 V DC
Max. current per channel1 A
Connection Data
- Connection to PLC
- Yokogawa Centum CS3000
- Connection on control side
- 2 x KS (40P)
- Connection (field side)
- LM2NZF 5.08mm
Connection to the cardAAI141, AAI143
Number of poles (control side)40-pole plug
Connection Field
- Type of connection
- Tension-clamp connection
- Clamping range, max.
- 2.5 mm²
- Solid, max. H05(07) V-U
- 2.5 mm²
- Flexible, max. H05(07) V-K
- 1.5 mm²
- Flexible with sleeve, min.
- 0.25 mm²
- Min. wire cross-section, AWG
- AWG 24
- Stripping length
- 7.5 mm
Clamping range, min.0.13 mm²
Solid, min. H05(07) V-U0.2 mm²
Flexible, min. H05(07) V-K0.2 mm²
Flexible with sleeve, max.1.5 mm²
Sleeve with plastic collar, max.1.5 mm²
Max. wire cross-section, AWGAWG 14
Classifications
- ETIM 6.0
- EC002780
- eClass 9.0
- 27-14-11-52
- eClass 10.0
- 27-14-11-52
ETIM 7.0EC002780
eClass 9.127-14-11-52
Temperatures
- Operating temperature, max.
- 70 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -25...70 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40...85 °C
