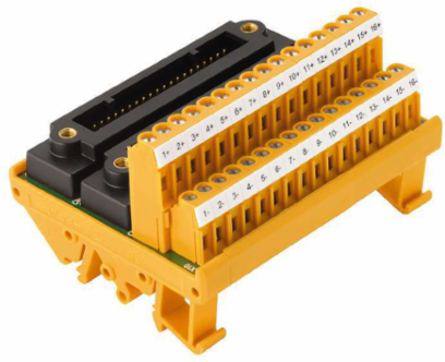

Weidmuller 1371590000 TBY-C3-16AIO-2KS-Z
- MPN: 1371590000
- PPN: WDM-1371590000
CAD
$187.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Interface, RS, 2 x KS (40P), LM2NZF 5.08mm
Documentation & Downloads
Specifications
General Data
| LED status display per channel | No |
|---|---|
| Type of test point | No |
| Fuse per channel | No |
| Power supply fuse | No |
| Disconnection per channel | No |
|---|---|
| Switch | No |
| LED status of the supply voltage | No |
Approvals
| Approvals | CE, EAC |
|---|
Dimensions And Weights
| Length | 90 mm |
|---|---|
| Width | 70 mm |
| Height | 52 mm |
| Net weight | 153.84 g |
| Length (inches) | 3.543 inch |
|---|---|
| Width (inches) | 2.756 inch |
| Height (inches) | 2.047 inch |
Supply Connection
| Type of connection | Tension-clamp connection |
|---|---|
| Clamping range, max. | 2.5 mm² |
| Solid, max. H05(07) V-U | 2.5 mm² |
| Flexible, max. H05(07) V-K | 1.5 mm² |
| Flexible with sleeve, min. | 0.25 mm² |
| Wire cross-section, min. AWG | AWG 14 |
| Stripping length | 7.5 mm |
| Clamping range, min. | 0.13 mm² |
|---|---|
| Solid, min. H05(07) V-U | 0.2 mm² |
| Flexible, min. H05(07) V-K | 0.2 mm² |
| Flexible with sleeve, max. | 1.5 mm² |
| Ferrule with plastic collar, max. | 1.5 mm² |
| Wire cross-section, max. AWG | AWG 24 |
Insulation Coordination (En50178)
| Rated insulation voltage | < 50 V AC |
|---|---|
| Pollution severity level | 2 |
| Insulation test voltage | 0.35 kVAC |
| Surge voltage category | III |
|---|---|
| Pulse voltage test (1,2/50μs) | 0.8 kV |
Ratings Data
| Operating voltage | 50 V AC / 70 V DC |
|---|
| Max. current per channel | 1 A |
|---|
Connection Data
| Connection to PLC | Yokogawa Centum CS3000 |
|---|---|
| Connection on control side | 2 x KS (40P) |
| Connection (field side) | LM2NZF 5.08mm |

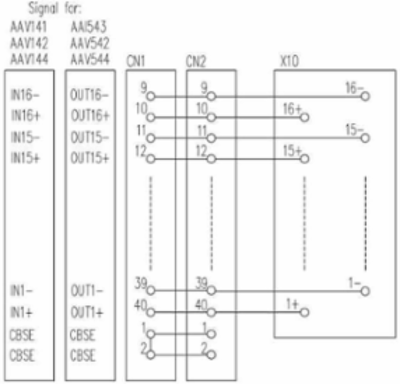

| Connection to the card | AAI543, AAV141, AAV142, AAV144, AAV542, AAV544 |
|---|---|
| Number of poles (control side) | 40-pole plug |
Connection Field
| Type of connection | Tension-clamp connection |
|---|---|
| Clamping range, max. | 2.5 mm² |
| Solid, max. H05(07) V-U | 2.5 mm² |
| Flexible, max. H05(07) V-K | 1.5 mm² |
| Flexible with sleeve, min. | 0.25 mm² |
| Min. wire cross-section, AWG | AWG 24 |
| Stripping length | 7.5 mm |
| Clamping range, min. | 0.13 mm² |
|---|---|
| Solid, min. H05(07) V-U | 0.2 mm² |
| Flexible, min. H05(07) V-K | 0.2 mm² |
| Flexible with sleeve, max. | 1.5 mm² |
| Sleeve with plastic collar, max. | 1.5 mm² |
| Max. wire cross-section, AWG | AWG 14 |
Classifications
| ETIM 6.0 | EC002780 |
|---|---|
| eClass 9.0 | 27-14-11-52 |
| eClass 10.0 | 27-14-11-52 |
| ETIM 7.0 | EC002780 |
|---|---|
| eClass 9.1 | 27-14-11-52 |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -25...70 °C |
| Operating temperature, min. | -25 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40...85 °C |
