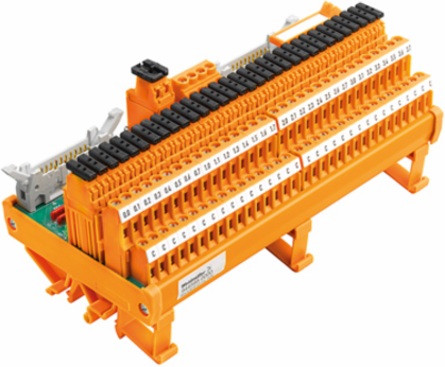

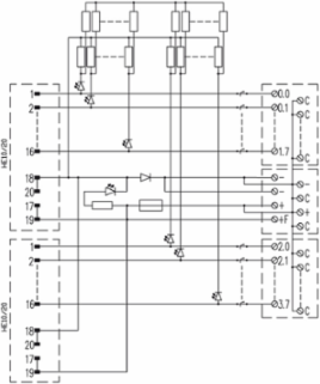

Weidmuller 9445950000 RS 32IO 2W I-L H S
- MPN: 9445950000
- PPN: WDM-9445950000
CAD
$616.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Interface, RS, Spacer, LED, 2-wire, Screw connection
Specifications
General Data
- LED status display per channel
- green
- Type of test point
- No
- LED status of the supply voltage
- yellow
- Common pole polarity
- Positive or negative can be selected using jumper
Disconnection per channelYes
Fuse per channelNo
Power supply fuse3.15 A
Approvals
- Approvals
- CE, EAC
ROHSConform
Dimensions And Weights
- Length
- 170 mm
- Width
- 87 mm
- Height
- 72 mm
- Net weight
- 486 g
Length (inches)6.693 inch
Width (inches)3.425 inch
Height (inches)2.835 inch
Supply Connection
- Type of connection
- Screw connection
- Clamping range, max.
- 6 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Wire cross-section, min. AWG
- AWG 26
- Tightening torque, min.
- 0.5 Nm
- Stripping length
- 6 mm
Clamping range, min.0.13 mm²
Solid, min. H05(07) V-U0.5 mm²
Flexible, min. H05(07) V-K0.5 mm²
Flexible with sleeve, max.2.5 mm²
Ferrule with plastic collar, max.2.5 mm²
Wire cross-section, max. AWGAWG 12
Tightening torque, max.0.6 Nm
Insulation Coordination (En50178)
- According to
- DIN EN 50178
- Surge voltage category
- III
- Pulse voltage test (1,2/50μs)
- 0.8 kV
Rated insulation voltage< 50 V AC
Pollution severity level2
Insulation test voltage0.35 kVAC
Ratings Data
- Operating voltage
- 24 V DC ± 10%
- Total operating current
- 2 A
Max. current per channel1 A
Connection Data
- Connection to PLC
- HE 10 connector - 20 pole
- Number of poles (control side)
- 2x20-pole plug
- Wiring system
- 2-wire
Connection on control side2 x plug-in connectors in acc. with IEC60603-13 / DIN41651
Connection (field side)LP2N 5.08mm
Connection Field
- Type of connection
- Screw connection
- Clamping range, max.
- 6 mm²
- Solid, max. H05(07) V-U
- 6 mm²
- Flexible, max. H05(07) V-K
- 4 mm²
- Flexible with sleeve, min.
- 0.5 mm²
- Min. wire cross-section, AWG
- AWG 26
- Tightening torque, min.
- 0.5 Nm
- Stripping length
- 6 mm
Clamping range, min.0.13 mm²
Solid, min. H05(07) V-U0.5 mm²
Flexible, min. H05(07) V-K0.5 mm²
Flexible with sleeve, max.2.5 mm²
Sleeve with plastic collar, max.2.5 mm²
Max. wire cross-section, AWGAWG 12
Tightening torque, max.0.6 Nm
Classifications
- ETIM 6.0
- EC002780
- eClass 9.0
- 27-14-11-52
- eClass 10.0
- 27-14-11-52
ETIM 7.0EC002780
eClass 9.127-24-22-16
UNSPSC30-21-18-01
Temperatures
- Operating temperature, max.
- 50 °C
- Storage temperature, max.
- 60 °C
- Operating temperature
- -25...50 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40...60 °C
