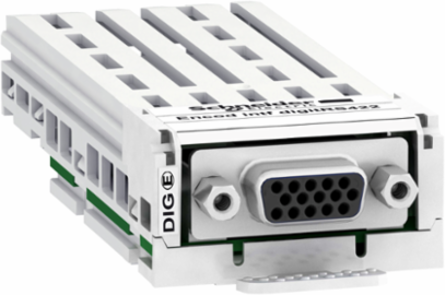

Digital Encoder Interface Module for Altivar Drives, 1 Female High Density SUB-D 15 Connector, 5-24V, RS422
Schneider Electric

Schneider Electric VW3A3420 Digital Encoder Interface Module for Altivar Drives, 1 Female High Density SUB-D 15 Connector, 5-24V, RS422

  • MPN: VW3A3420
  • PPN: SCH-VW3A3420
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $191.78

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This digital encoder interface module is an option for variable speed drives of Altivar range. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It improves drive performance irrespective of the motor load state, zero speed torque, accurate speed regulation, torque accuracy, shorter response times on a torque surge, improved dynamic performance in transient state. It is protected against short circuits and overloads. It weighs 150g. It is used for Flux Vector Control operation with sensor (FVC mode) for asynchronous motors, or for Vector Control operation with speed feedback (FSY mode) for synchronous motors. It is inserted in a dedicated slot of the drive.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia, United States

    Communications & Management Attributes

    Communication Port Protocol
    RS422

    Complementary Attributes

    Maximum Cable Distance Between Devices
    100 m A/B/I), 50 m SSI), 100 m SSI)at 300 kHz, 50 m EnDat 2.2), 100 m EnDat 2.2)with propagation delay compensation
    Maximum Operating Frequency
    1000 kHz
    Maximum Supply Current0.25 A 5 V DC, 0.1 A 12 V DC, 0.1 A 24 V DC

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, SI
    Encoder Type
    EnDat 2.2, A/B/I incremental XCC1 type R, A/B/I incremental XCC1 type X, SSI absolute encoder XCC2 type SG, SSI absolute encoder XCC3 type SB
    [Us] Rated Supply Voltage
    5 V DC 4.75-5.25 V), 12 V DC 11.4-12.6 V), 24 V DC 22.8-25.2 V)
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.1 kg CO2 eq., 0.058951
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    5 kg CO2 eq., 4.5611
    Local Data Status
    Publishable
    Return Indicator
    Y
    Future Msrp
    117.78
    Stock Policy
    2
    Serviceability
    No
    Manufacturing Carbon Footprint
    4.5611
    Weee Applicability
    Component
    Weee Exclusion Rationale
    Component not in scope – non independent function
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1929
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Advanced
    Market Segmentation
    Industrial
    Connector Type
    1 female high density SUB-D 15
    Product Or Component Type
    digital encoder interface module
    Returnability
    Yes
    Sustainable Packaging
    No
    Pep Code
    ENVPEP2010009EN
    Pep Verification Date
    2020-12-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    referent product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Indonesia
    Energy Model - Use [B6]
    Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
    Recyclability Potential, In %
    10
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Air Pollution (M3) Total Life Cycle
    4788
    Air Pollution (M3) Operational Energy Use [B6]
    4374.2
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
    1205.7
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
    1160
    Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
    4.5611
    Hazardous Waste Disposed Of (Kg) Total Life Cycle
    24.113
    Net Use Of Fresh Water (M3) Total Life Cycle
    369.85
    Non-hazardous Waste Disposed Of (Kg) Total Life Cycle
    382.85
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
    381.25
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    53.255
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
    2092.6
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    2036.7
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    2.1654
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    2.203
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    1828
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    1776.5
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    1.9994
    Water Pollution (M3) Total Life Cycle
    4669.2
    Water Pollution (M3) Distribution [A4]
    3.1676
    Water Pollution (M3) End Of Life [C1-c4]
    2.3748
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Protection Typeshort-circuit protection, overload protection
    Carbon Footprint Of The Distribution Phase [A4]0.019262, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0067668, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]102 kg CO2 eq., 102.28
    Local Publishable Date2026-01-12
    Future Imap110.51
    Stocking FlagN
    Device TypeVariable speed drive - VSD option & accessory
    TraceabilityNo
    Use Carbon Footprint102.28
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductAltivar
    Software VersionEIME v5.8.1
    Total Lifecycle Carbon Footprint107 kg CO2 eq.
    Database Version2018-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo adapt the variable speed drive to specific applications. Calculation of the environmental impact is based on 10 years of product service lifetime. The usage profile taken into account is 100% uptime in use phase.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime, In Kwh219
    Energy Model - Installation [A5]Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix 1kV-60kV; AC; 1kV - 60kV; EU-27
    Carbon Footprint (Kg Co2 Eq, Total Life Cycle)106.93
    Package Weight(Lbs)155.0 g
    Warranty (In Months)18
    Air Pollution (M3) Manufacturing [A1-a3]411.48
    Air Pollution (M3) End Of Life [C1-c4]0.97
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]45.303
    Global Warming (Kg.Equivalent.Co2) Total Life Cycle106.93
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]102.28
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]23.92
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]369.74
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]1.5695
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle1830.2
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1776.5
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]55.42
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle262.42
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]260.25
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]2.203
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]51.052
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle262.25
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]260.25
    Water Pollution (M3) Manufacturing [A1-a3]436.18
    Water Pollution (M3) Operational Energy Use [B6]4226.6

    Environment Attributes Main

    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    106.93
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Without Single Use Plastic
    No
    Pep Code
    ENVPEP2010009EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP2010009EN
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2020-12-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    digital encoder interface module
    Range Of ProductAltivar

    ETIM

    ETIM 8
    EC002025
    ETIM 9EC002025

    Output Attributes

    Output Signal
    Clock+, Clock- SSI), Data+, Data-, Clock+, Clock- EnDat 2.2)

    Input Attributes

    Input Signal
    Data+, Data- EnDat 2.2), Data+, Data- SSI), Temp+, Temp-, A+,A-/B+,B-/I+,I- A/B/I), TTL
    Input Impedance121 Ohm
