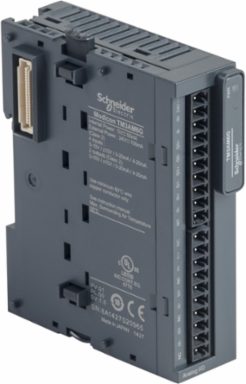

Schneider Electric TM3AM6G Modicon TM3 Analog I/O Module, 4 Inputs, 2 Outputs, 24V DC, IP20
- MPN: TM3AM6G
- PPN: SCH-TM3AM6G
CAD
$432.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon TM3 Analog I/O Module, 4 Inputs, 2 Outputs, 24V DC, IP20
Features
- The Schneider Electric TM3AM6G is engineered for seamless plug-and-play integration with Modicon M221, M241, M251, and M262 logic controllers. This ensures you can easily expand your existing automation system's physical footprint without upgrading your primary processing unit, slashing deployment costs and saving critical control cabinet space.
- This mixed analog I/O module features 4 analog inputs and 2 analog outputs embedded into a single compact 23.6mm wide housing. This dual-function layout allows control engineers to simultaneously monitor sensor data and command variable speed drives (VSDs) or actuators from a single slot, reducing total hardware expenses and streamlining DIN rail assembly.
- Both the inputs and outputs support full flexibility across standard industrial signals, including 0-10V, -10 to +10V, 0-20mA, and 4-20mA loops. This wide configuration range eliminates comparison confusion, allowing a single module type to interface with diverse field instrumentation like temperature transmitters, flow meters, and pressure sensors.
- Offering a high 12-bit resolution (or 11 bits + sign) paired with a tight absolute accuracy error of just $\pm0.2\%$ at 25 C, this module provides exceptionally precise data conversion. The rapid 1 ms sampling duration minimizes signal latency, ensuring your automated processes receive instantaneous, dependable feedback for fine-tuned loop control.
- Equipped with removable spring terminal blocks rather than standard screw clamps, this module dramatically simplifies wiring and speeds up field maintenance. The vibration-resistant spring mechanics maintain constant pressure on your twisted shielded pairs, preventing intermittent data losses caused by the thermal expansion or heavy mechanical vibrations common in harsh manufacturing plants.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, France, Japan, United States |
|---|
| Depth | 70 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Cross Talk | <= 1 LSB, <= 1 LSB |
| Insulation | between input and supply 1500 V ACbetween input and internal logic 500 V AC, between output and supply 1500 V AC, between output and internal logic 500 V AC |
| Repeat Accuracy | +/-0.5 %FS input, +/-0.5 %FS input+/-0.5 %FS input, +/-0.5 %FS input |
| Certificate Agency | CE, UKCA, RCM, EAC, cULus, cULus HazLoc |
| Carbon Footprint Of The Distribution Phase [A4] | 0.04393186640076018, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.00518087971352722 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 50 kg CO2 eq., 50.088756455125555 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Conversion Time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Front Installation Possible | false |
| Load Impedance Ohmic | 1 kOhm voltage300 Ohm current |
| Local Signalling | 1 LED green PWR |
| Marking | CE |
| Permissible Continuous Overload | 13 V voltage40 mA current |
| Product Or Component Type | input/output analog module |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | Yes |
| Shock Resistance | 15 gn 11 ms |
| Stabilisation Time | 1 ms |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Temperature Drift | +/- 0.01 %FS/°C+/- 0.01 %FS/°C |
| Type Of Cable | twisted shielded pairs cable <30 m input/output |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| System Accessory | false |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Taiwan, TW |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; China, CN |
| Recyclability Potential In % | 3 |
| Width Nominal | 23.6 mm |
| Appendant Operation Agent (Ex Ib) | false |
| Certified For Ul Hazardous Location Group B (Hydrogen) | false |
| Certified For Ul Hazardous Location Group D (Propane)) | false |
| Certified For Ul Hazardous Location Group F (Carbonaceous Dust) | false |
| Io-link Master Present | false |
| Rack-assembly Possible | false |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | false |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Electrical Connection | 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs, 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs, outputs and supply |
| Mounting Support | top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Typical Current Consumption | 45 mA 5 V DC no load55 mA 5 V DC full load, 55 mA 24 V DC no load, 100 mA 24 V DC full load |
| Non-linearity | +/- 0.2 %FS, +/- 0.2 %FS |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.47040137511005103, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 13 kg CO2 eq., 12.711334999066082 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1402009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Bearing Track Assembly Possible | false |
| Electromagnetic Emission | radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011 |
| Immunity To Microbreaks | 10 ms |
| Load Type | resistive |
| Lsb Value | 2.44 mV, 0...10 V4.88 mV, - 10...10 V4.88 µA, 0...20 mA3.91 µA, 4...20 mA |
| Network Type | DC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon TM3 |
| Sampling Duration | 1 ms |
| Software Version | v6.1 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 63 kg CO2 eq. |
| Vibration Resistance | 3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | false |
| Pep Code | ENVPEP1402009EN |
| Pep Verification Date | 2024-06-01 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; China, CN |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; China, CN |
| Height Nominal | 90 mm |
| Appendant Operation Agent (Ex Ia) | false |
| Certified For Ul Hazardous Location Group A (Acetylene) | false |
| Certified For Ul Hazardous Location Group C (Ethylene)) | false |
| Certified For Ul Hazardous Location Group E (Metal Dusts) | false |
| Certified For Ul Hazardous Location Group G (Non Conductive Dust) | false |
| Performance Level According To En Iso 13849-1 | none |
| Radio Standard Wi-fi 802.11 | false |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| Wall Mounting/Direct Mounting Possible | false |
| Package Weight(Lbs) | 195.0 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation) |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 63.31960557541598 |
| Circularity Profile | ENVEOLI1402009EN |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 10-95 % without condensation |
| Pep Verification Date | 2024-06-01 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ambient Air Temperature For Storage | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1402009EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1402009EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | input/output analog module |
|---|
| Range Of Product | Modicon TM3 |
|---|
ETIM
| ETIM 8 | EC001596 |
|---|
| ETIM 9 | EC001596 |
|---|
Output Attributes
| Analogue Output Resolution | 12 bits, 11 bits + sign |
|---|---|
| Analogue Output Number | 2 |
| Analogue Output Type | current 4...20 mA, current 0...20 mAvoltage 0...10 V, voltage - 10...10 V |
|---|---|
| Output Ripple | 20 mV |
Input Attributes
| Analogue Input Resolution | 12 bits, 11 bits + sign |
|---|---|
| Input Impedance | <= 50 Ohm, >= 1 MOhm<= 50 Ohm, >= 1 MOhm |
| Analogue Input Type | current 4...20 mA, current 0...20 mAvoltage 0...10 V, voltage - 10...10 V |
|---|---|
| Analogue Input Number | 4 |
Accessories
